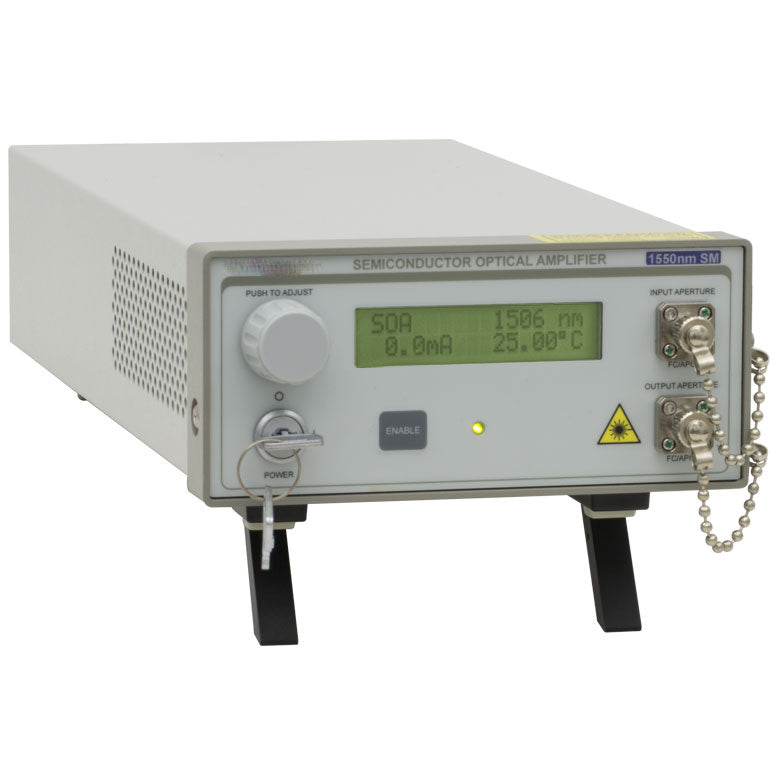

TH-S7FC1013S - Semiconductor Optical Amplifier, 1528 - 1562 nm, Polarization Insensitive
TH-S7FC1013S - Semiconductor Optical Amplifier, 1528 - 1562 nm, Polarization Insensitive
Amplifier Type SOA
Center Wavelength 1550 nm
Optical 3 dB Bandwidth 74 nm
Saturation Output Power @ -3 dB 14 dBm
Signal Gain @ Pin = -20 dBm 13 dB
Laser Class 1M
- Center Wavelength: 1050, 1300, 1550, 1590, or 1625 nm
- Typical Noise: <0.5%
- Saturation Output Powers from 9 dBm to 15 dBm
- FC/APC Input and Output Connections
- Analog Modulation Input (0 to 5 V)
- Polarization Insensitive and Polarization Maintaining Versions
- TEC Temperature Stabilized to <0.01 °C
- USB Interface for Remote Operation
