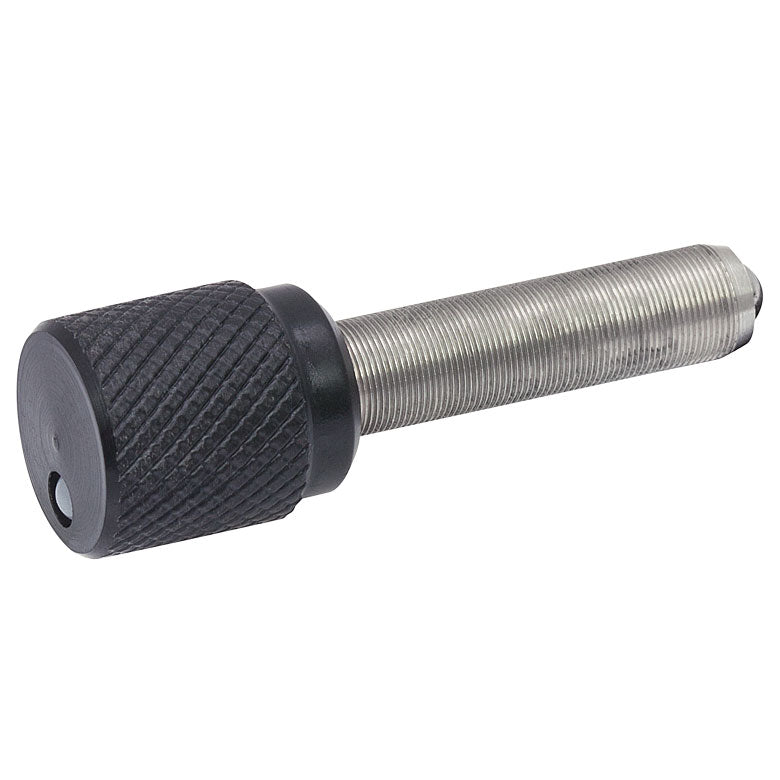

TH-UFS075 - Fine Adjustment Screw with Knob, 3/16"-100, 0.75" Long
TH-UFS075 - Fine Adjustment Screw with Knob, 3/16"-100, 0.75" Long
- Two Lengths Available
- Max Load: 18 lbs (8 kg)
Our high precision 3/16"-100 Fine Adjustment Screws are equivalent to the adjusters sold above, but with a knob permanently attached to one end. The knob improves adjustment sensitivity. Our UFS series adjusters have a maximum axial load capacity of 18 lbs (8 kg). The adjuster body is constructed of 303 stainless steel and comes pregreased to ensure smooth mating into compatible components. The ball tip is constructed using 440 stainless steel that is fixed onto the adjuster using epoxy.
