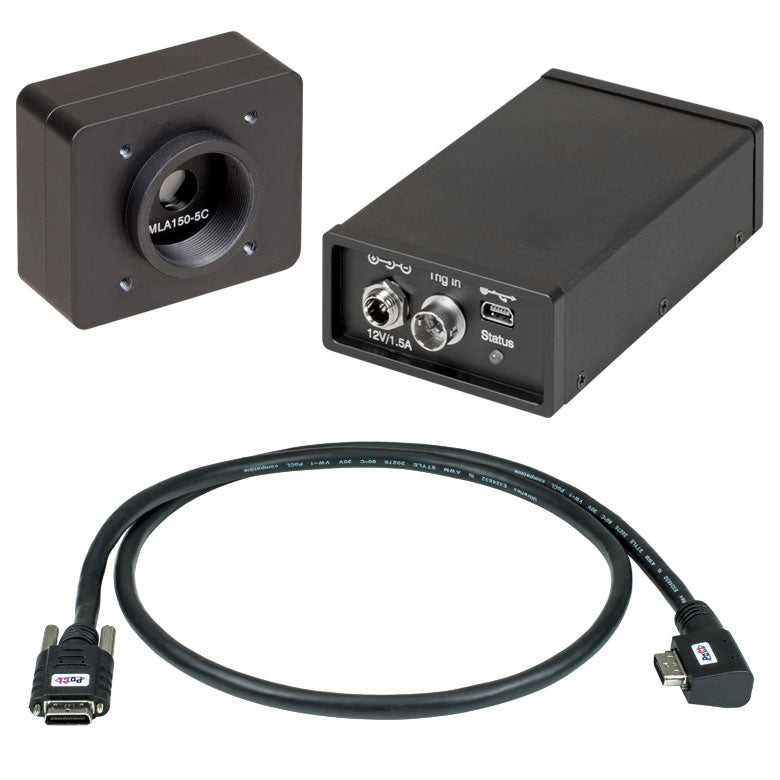

TH-WFS20-5C/M - Fast Shack-Hartmann WFS, 150 µm Pitch, Chrome Masked,

TH-WFS20-5C/M - Fast Shack-Hartmann WFS, 150 µm Pitch, Chrome Masked, 300 - 1100 nm, M4 Taps

Fosco Connect Part No.: THWFS20-5C-M

TH-WFS20-5C-M - Fast Shack-Hartmann WFS, 150 µm Pitch, Chrome Masked, 300 - 1100 nm, M4 Taps

Wavelength Range 300 - 1100 nm

Effective Focal Length 4.1 mm

Lenslet Array Coating Chrome Mask

Lenslet Pitch 150 µm

Wavefront Accuracy (at 633 nm) λ/30 rms

Wavefront Sensitivity (at 633 nm) λ/100 rms

Frame Rate 23 - 880 Hz

Camera Resolution 1440 x 1080 Pixels Max, Software Selectable

High-Speed Control Box with PoCL and Table Clamps YES

Included Cable USB 2.0 Type-A to Mini-B Cable, 2 m
