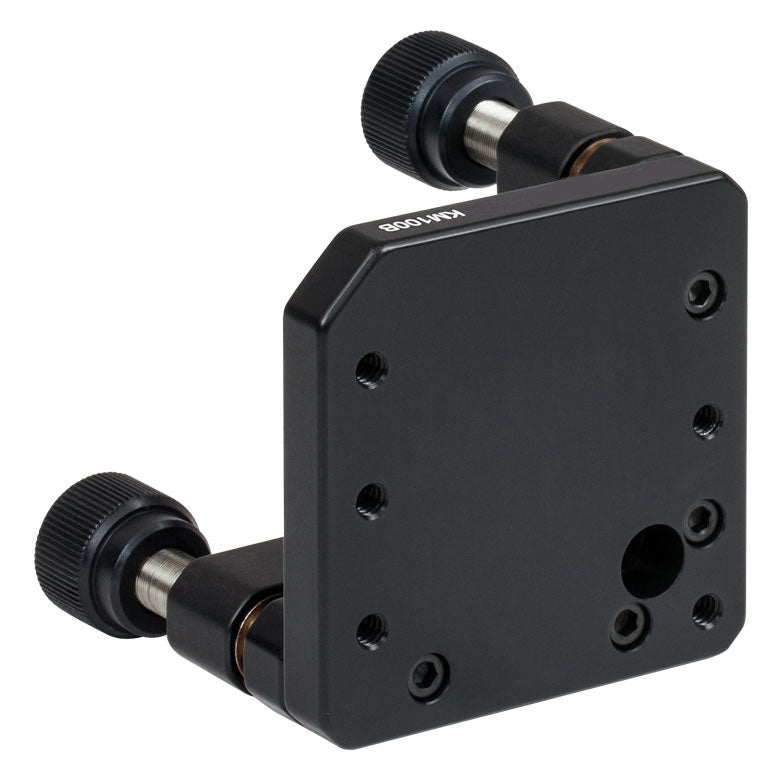

THKM200B - 2.90" x 2.90" Kinematic Platform Mount
THKM200B - 2.90" x 2.90" Kinematic Platform Mount
- Two 80 TPI Adjusters for ±3° or ±4° of Fine Tip and Tilt Control
- Platform Can Be Oriented Horizontally or Vertically
- Designed for Use with Clamping Arms (Sold Below)
- Removable Knobs Expose Adjuster Screws with Hex Socket
- #8 (M4) Through Holes in Back Plate of Mounts for Ø1/2" Post Mounting
- Fabricated from Black Anodized Aluminum
| Kinematic Platform Mount Specifications | |||||||
|---|---|---|---|---|---|---|---|
| Item # | Mounting Platform | Adjuster Thread | Angular Range | Post Mounting | |||
| Dimensions | Tapped Holesa | Clearance Holes | |||||
| THKM100B | 1.92" x 1.92" (48.6 mm x 48.6 mm) |
6-32 (5 Places) | N/A | 1/4"-80 | ±4° | #8 Counterbore (3 Places) | |
| THKM200B | 2.90" x 2.90" (73.7 mm x 73.7 mm) |
6-32 (4 Places) 1/4"-20 (5 Places) |
#8 (4 Places) | ±3° | #8 Counterbore (7 Places) | ||
| THKM100B-M | 48.6 mm x 48.6 mm (1.92" x 1.92") |
M4 (5 Places) | N/A | ±4° | M4 Counterbore (3 Places) | ||
| THKM200B-M | 73.7 mm x 73.7 mm (2.90" x 2.90") |
M4 (4 Places) M6 (5 Places) |
M4 (4 Places) | ±3° | M4 Counterbore (7 Places) | ||
