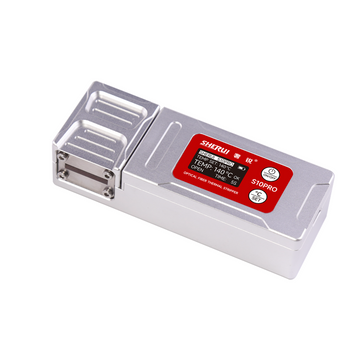

SH-S10Pro Thermal Optical Fiber Stripper
SH-S10Pro Fiber Optic Thermal Stripper
Fast. Precise. Durable. Built for professional-grade fiber prep.
The SH-S10Pro thermal stripper offers precise, consistent stripping of a wide range of optical fibers — including bare fiber, bundled fiber, ribbon fiber, and invisible fiber — using controlled heat rather than mechanical force. With an adjustable temperature range from 50°C to 180°C and a memory function that recalls your last settings, it delivers unmatched efficiency in any environment.
Its full-metal body provides durability, while the integrated 7.4V 3500mAh lithium battery and Type-C fast charging make it ideal for field use. The intuitive button layout and auto-shutdown safety feature ensure smooth, user-friendly operation — even for large-scale ribbon fiber prep (up to 24 fibers at once). A compact but rugged workhorse for any splicing toolkit.
Download Product Specification:
Key Features
-
✅ Full-metal housing for maximum durability
-
✅ Adjustable stripping temperature from 50°C to 180°C
-
✅ Built-in lithium battery (7.4V, 3500mAh) with Type-C charging
-
✅ Strips up to 48 bare fibers or 24 ribbon fibers simultaneously
-
✅ Wider blade design improves multi-fiber efficiency
-
✅ Temperature memory + 6-minute auto shutoff for safety
-
✅ Small form factor ideal for in-field and bench work
Specifications
| Feature | Description |
|---|---|
| Applicable Fiber | Bundled fiber, bare fiber, ribbon fiber |
| Stripping Capacity | 1–15 bundled fiber, 1–48 bare fiber, 2–24 ribbon fiber, 1–12 invisible fiber |
| Fiber Cladding Diameter | 125 µm |
| Coating Stripping Length | ≤32 mm |
| Limit Blade Width | 20 mm |
| Temperature Range | 50°C – 180°C |
| Power Supply | Adapter: DC 12V / Built-in battery: 7.4V 3500mAh |
| Dimensions | 112 mm (L) × 40.5 mm (W) × 29.5 mm (H) |
| Weight | 236 g |
| Auto-Shutdown Time | 6 minutes |
Package Includes
| Item | Quantity |
|---|---|
| Optical fiber thermal stripper | 1 |
| Packing box | 1 |
| Hairbrush | 1 |
| USB charging cable | 1 |
| Certificate | 1 |
| Adjusting wrench | 2 |
Structural Overview
-
On/Off & temperature control button
-
Type-C charging port
-
LCD screen for real-time status
-
Blade + silicone pad heating system
-
Cover with locking mechanism for consistent pressure
-
Temperature gear switch button
Operating Steps (Quick Guide)
-
Power on and set desired temperature using gear switch
-
Place fiber on heating plate (supports all major fiber types)
-
Close cover until tight fit — indicator will flash and beep
-
When beeping stops, remove stripped fiber
-
Clean heating plate with included brush
-
Device auto shuts off in 6 minutes for safety
Reminder
When powered on, always open the cover if not in use. Closing the cover during standby mode will cause the silicone pad to contact the heated plate, shortening its lifespan.
