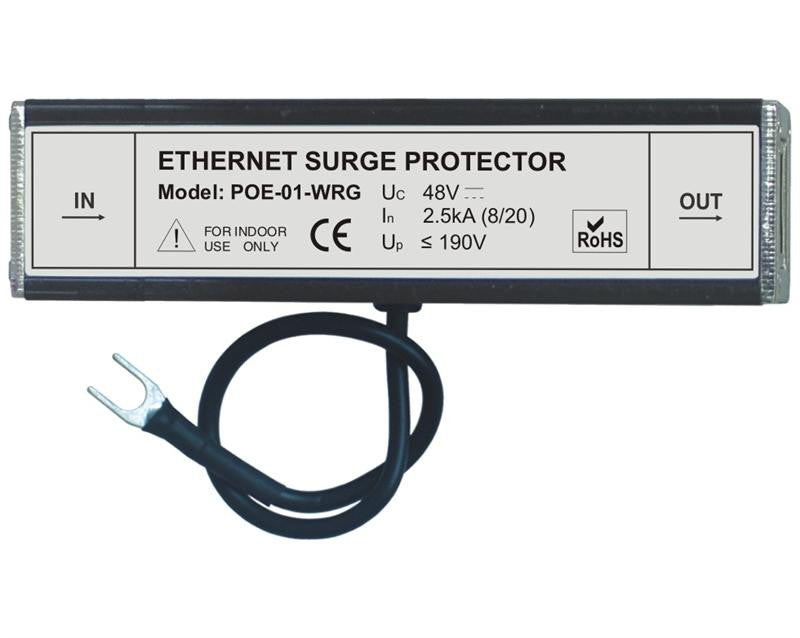

POE-01-WRG is an in-line RJ45 Ethernet Cat6 cable surge protector. It installs simply on a Cat5, Cat 5e or Cat6 4 twisted pair cable.

Device is using special diodes and gas discharge modules for effective lightning protection. It protects any RJ45 Ethernet based device like switches, DSL modems, routers, computers, etc., while allowing PoE 802.3af/at powered cables to pass through the PoE power to remote cameras or WiFi/VoIP equipment.

The PoE feature allows protection of the expensive CO equipment against lightning and other industrial power surges.

The Ethernet surge protector is also available in special multi-port version with 8, 16 or 24 surge protecting ports. The 8 pin surge protector is also good for RJ48c 100ohm T1 interfaces, providing effective surge protection on all 8 pin connectors from the T1 copper interface.

Note: This special surge protector version does SUPPORT the IEEE 802.3af/at PoE standard (Power over Ethernet). You can use such protector on PoE active cabling. The compatibility is assured with the IEEE 802.3af/at standard by supporting a much higher clamping voltage of 57V.

Features of POE-01-WRG RJ45 Ethernet and T1 surge protector

• Fast energy absorption on over-voltage
• Low resistance and minimal capacitance - minimal influence on data link
• Easy in-line installation: two RJ45 female connectors

Technical specifications

• Discharge current max.: 5KA
• Discharge current nominal: 0.5KA
• Max. voltage: 57V PoE (all pins 1 to 8)
• Response time: line-line<1ns, line-ground<100ns
• Insertion loss: <0.5dB (100MHz)
• Capacity: 40pF
• Dimensions: 106.2mm x 37.6mm x 25.6mm
• Weight: 75g

Additional information on POE-01-WRG: PDF Datasheet
