Overview

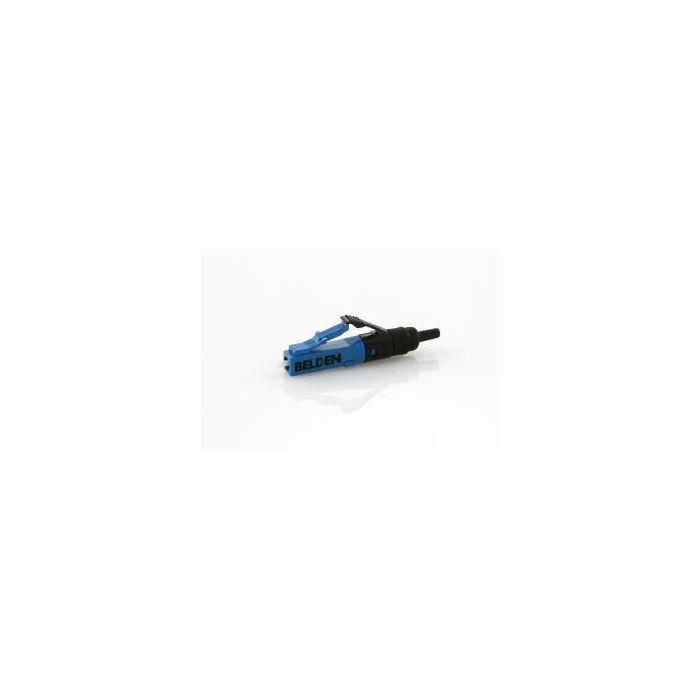

The Belden FX Brilliance Universal Connector is a high-performance, field-installable fiber optic solution designed for rapid deployment in data centers and enterprise networks. Engineered for efficiency, these connectors utilize an advanced design that eliminates the need for field polishing, epoxy application, or crimping.
This universal connector series is built to simplify the termination process for technicians, reducing installation time while maintaining high optical performance. It is ideal for singlemode OS2 fiber environments, offering a streamlined approach to building reliable fiber optic links in diverse operating settings.
Key Features
-
No-Epoxy Termination
Eliminates the time and mess associated with curing epoxy, increasing field productivity. -
No-Polish Design
Removes the requirement for abrasive films and water, allowing for clean and rapid connections. -
No-Crimp Technology
Simplifies the installation hardware, reducing the risk of fiber damage during the assembly process. -
Universal Compatibility
Designed to be compatible with a wide range of standard LC adapter interfaces. -
Singlemode OS2 Performance
Optimized for long-distance, high-bandwidth OS2 singlemode fiber applications. -
25-Pack Convenience
Supplied as a bulk kit to better support large-scale enterprise network installations.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Belden |
| Part Number | AX105203B25 |
| Connector Type | LC |
| Fiber Type | Singlemode (OS2) |
| Housing Color | Blue |
| Package Quantity | 25 |
Frequently Asked Questions
Does this connector require epoxy?
No, the FX Brilliance series is designed as a no-epoxy, no-polish, no-crimp connector.
Is this compatible with OS2 fiber?
Yes, this specific model is designed for OS2 singlemode fiber applications.
Are there 25 connectors in the package?
Yes, this SKU (AX105203B25) is a standard 25-pack.
Can I use this for field termination?
Yes, it is specifically engineered for quick field installation in enterprise and data center environments.
What color is the connector housing?
The housing is blue, indicating singlemode compatibility.
