Overview

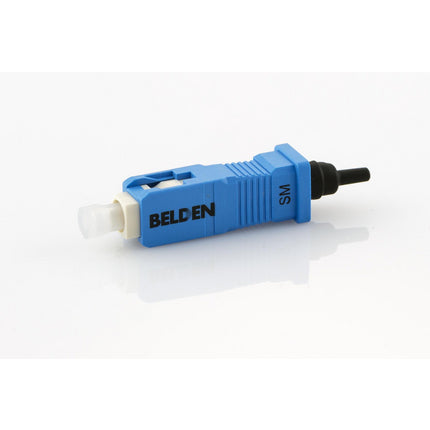

The Belden FX Brilliance Universal Connector is designed for efficient, high-performance fiber optic termination in demanding environments. This SC connector utilizes a no-epoxy, no-polish, and no-crimp mechanical design, significantly reducing installation time and eliminating the need for hazardous adhesives or extensive curing processes.
Engineered for OS2 singlemode applications, these connectors provide reliable signal integrity for data center, enterprise, and telecommunications network infrastructures. The blue housing ensures easy identification for singlemode compatibility, making them an ideal choice for technicians performing quick field repairs or new fiber installations.
Key Features
-
No-Epoxy Design
Eliminates the use of adhesives, reducing setup time and preventing potential contamination. -
No-Polish Technology
Provides an immediate, high-quality fiber end-face finish without the need for polishing film or equipment. -
No-Crimp Installation
Simplifies the termination process by reducing the mechanical complexity required for securing the fiber. -
Universal Compatibility
Designed to work seamlessly with standard fiber tools, ensuring versatility across different installation projects. -
SC Connector Interface
Industry-standard form factor ensuring compatibility with existing patch panels and adapters. -
OS2 Singlemode Support
Optimized for high-speed, long-distance singlemode data transmission.
Applications
- Data Center Interconnects
- Enterprise LAN/WAN Networks
- Telecommunications Infrastructure
- Fiber-to-the-Desk (FTTD)
- Field Restoration and Repairs
Package Contents
- 25 x FX Brilliance Universal SC OS2 Blue Connectors
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Belden |
| Part Number | AX105208B25 |
| Connector Type | SC |
| Fiber Mode | OS2 (Singlemode) |
| Termination Style | No-Epoxy, No-Polish, No-Crimp |
| Housing Color | Blue |
| Quantity per Pack | 25 |
Frequently Asked Questions
Are these connectors reusable?
The FX Brilliance line is designed as a field-installable, one-time termination solution.
Can I use these on multimode fiber?
No, these specific connectors (AX105208B25) are engineered specifically for OS2 singelmode fiber applications.
Do I need a special tool kit for these?
They are designed for compatibility with universal fiber termination kits, though specific manufacturer-approved tools are recommended for optimal performance.
What does the 'No-Crimp' feature mean?
It indicates the connector mechanism secures the fiber without requiring a mechanical crimp tool to compress a sleeve or ferrule.
Are these suitable for outdoor use?
These are designed primarily for controlled enterprise or data center environments; consult the specification sheet for detailed environmental ratings.
