Overview

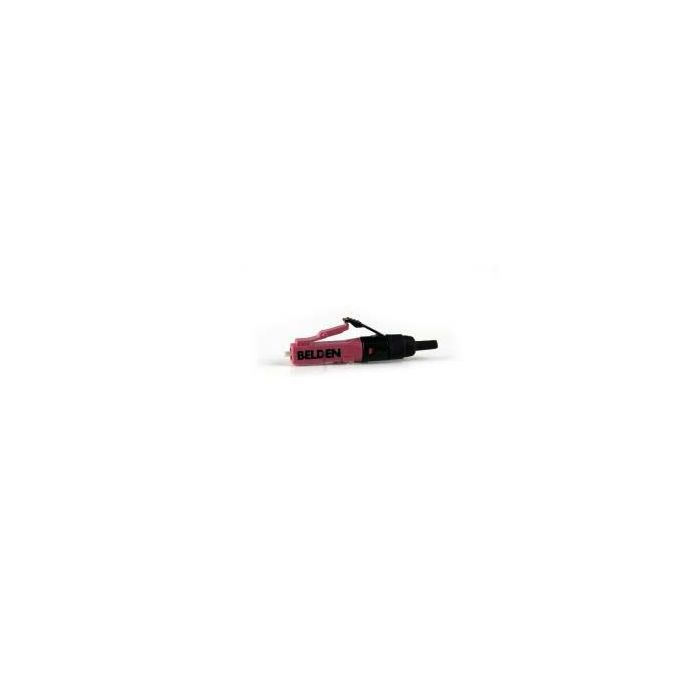

The Belden FiberExpress Brilliance Universal LC connector is a field-installable fiber optic connector designed for rapid, reliable termination of OM3 and OM4 multimode fibers. These connectors utilize an innovative design that eliminates the need for epoxy, polishing, or crimping in the field, significantly reducing installation time and complexity.
Engineered for use in high-density data centers and enterprise network environments, the Brilliance Universal connector ensures high-performance optical connectivity. Its magenta housing color-coding provides quick identification for laser-optimized multimode fiber applications, making it an efficient choice for network contractors and installers.
Key Features
-
No-Epoxy Termination
Eliminates the requirement for curing adhesives, reducing preparation time and tool requirements. -
No-Polish Design
Factory-cleaved fiber stub enables immediate connection without manual polishing, ensuring consistent return loss. -
No-Crimp Technology
Simplifies the physical installation process by removing the need for specialized crimp tools. -
Universal Compatibility
Optimized for both OM3 and OM4 multimode fiber types to support various high-speed network infrastructures. -
Magenta Housing
Provides clear visual identification for 10GbE-capable OM3/OM4 fiber systems. -
LC Form Factor
Compact SFF (Small Form Factor) design ideal for high-density patch panels and equipment ports.
Applications
- Data center cabling
- Enterprise LAN networks
- Campus backbone systems
- Fiber-to-the-desk environments
- High-speed storage area networks (SAN)
Package Contents
- 25 x LC Brilliance Universal Connectors
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Belden |
| Part Number | AX105252B25 |
| Connector Type | LC |
| Fiber Compatibility | OM3 / OM4 (Multimode) |
| Termination Style | No-Epoxy, No-Polish, No-Crimp |
| Color | Magenta |
| Package Quantity | 25 |
Frequently Asked Questions
Are these connectors reusable?
The Brilliance Universal connectors are generally considered single-use for permanent field installations.
Do I need a special tool kit to install these?
While they do not require crimp tools, a precision fiber cleaver and fiber preparation tools are required for correct termination.
Can I use these with Singlemode fiber?
No, these specific connectors are designated for OM3 and OM4 Multimode fiber applications.
What does the magenta color signify?
Magenta is the TIA-standard color code for laser-optimized OM3 and OM4 multimode fiber cabling.
Is the fiber cleaved inside the connector?
Yes, each connector includes a factory-cleaved fiber stub to ensure optimal performance without field polishing.
