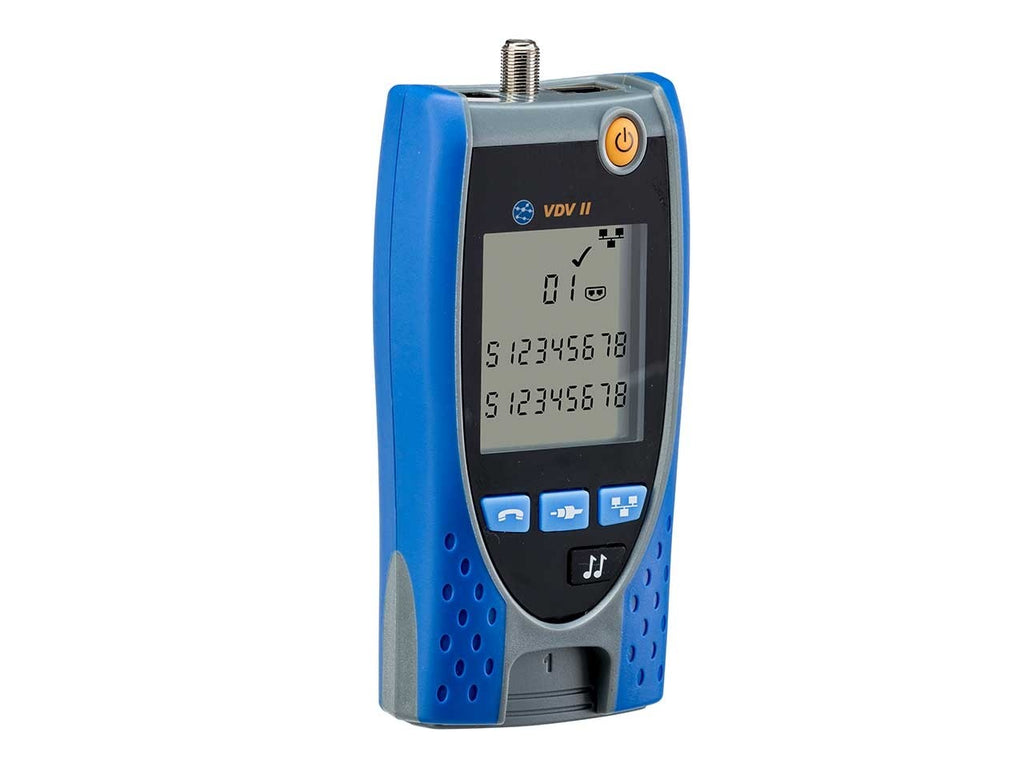

VDV II Plus -Voice, Data, And Video Cable Verifier

• Measures cable length
• Provides distance to fault (TDR)
• Identifies wiring errors instantly
• Determines services running: ISDN, PBX and PoE
• RJ-11, RJ-12, RJ-45 and COAX ports
• All the features of the VDV II including:
  • Larger 2.9" Display
  • Backlight
  • Hub Blink
  • Cable Length
  • Distance to Open
  • Carry Case & Cables

VDV II Plus – Voice, Data and Video Cable Verifier.
Includes 1 x tester, 1 x dual port remote unit, 1 x coax remote unit, 1 x alkaline battery, 1 x multi-language user guide, 2 x RJ45 to alligator clip cable 390mm, 2 x screened RJ45 to RJ45 cable 150mm, 2 x RJ11/12 to RJ11/12 cable 100mm, 1 x F-type plug to F-type plug cable 230mm, 1 x F-81 barrel splice, 1 x BNC female to F-type male adaptor, 1 x BNC female to F-type female adaptor, 1 x RCA female to F-type male adaptor,
1 x RCA female to F-type female adaptor, 1 x wallet wiring card, 1 x carry case.

Accuracy
The flagship VDV II Pro utilises TDR to accurately measure cable length and provide distance to fault information. TDR’s work by injecting a signal into the cable and measuring the time for any signal to be reflected back after encountering changes in impedance caused by cable damage, open and short circuits. The recorded time is then translated into an accurate distance measurement. TDR helps to pinpoint where cabling faults occur. This speeds up fault finding as well as minimising disruption and potential damage to fixtures and fixings.

Speed
With comprehensive details on faults such as opens, shorts, crossovers and split pairs, VDV II identifies wiring errors instantly. The integrated RJ11/RJ12 (voice), RJ45 (data) and F-Type (video) connectors allow faster testing of most types of low-voltage cables by eliminating the need for separate testers or adapters.

Intelligence
Connection issues are not always associated with cable faults, so VDV II Pro has the capability to help identify service related issues. By detecting the presence of voltage and checking polarity, VDV II Pro quickly determines which media service is running over the cable, such as ISDN, PBX
and PoE (Power over Ethernet) resulting in faster fault diagnosis. Troubleshooting active Ethernet networks is also made easier with in-built network detection that displays network rate and duplex information. Furthermore, to prevent potentially costly damage to the tester all VDV II’s are smart enough to know when they have been plugged into an outlet where voltage is present.

Basic Specifications

Dimensions (mm): 160 x 76 x 36

Weight: 0.26 kg

Length Range: 0.3 - 450m / 1-1476 ft (Plus and Pro only)

Battery Type: 9V alkaline. Typically 20 hours minimum continuous use (backlight off)
