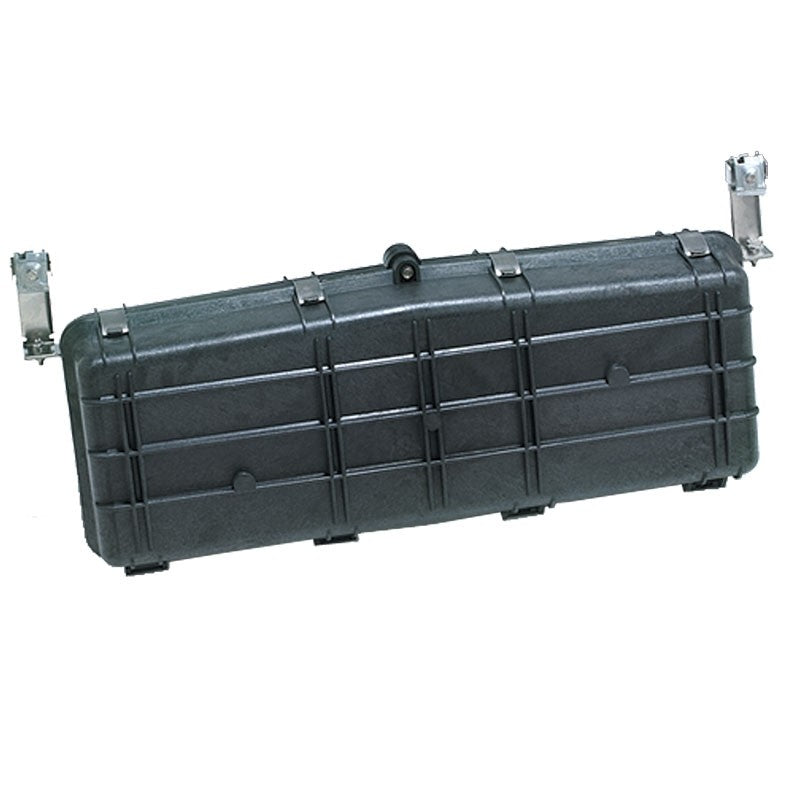

The AFL LightGuard® LG-600 Aerial Weathertight Fiber Optic Splice Closure is a rugged, high-capacity fiber splice enclosure engineered for demanding outside plant aerial fiber optic networks. Designed to support up to 384 single fusion splices or 1,152 mass fusion splices, the LG-600 provides reliable cable management, environmental sealing, and long-term protection for backbone, feeder, distribution, and FTTx deployments.
Download Spec Sheet
Built for both butt and in-line cable configurations, the LG-600 combines a durable engineered thermoplastic housing with AFL's patented tongue-in-groove cover sealing system. This design helps protect critical fiber splices from moisture, dust, ultraviolet exposure, and harsh outdoor operating conditions.
The closure includes six individual self-sizing grommeted cable ports and can be expanded to support up to twelve cable entrances. Installation and re-entry require only a common can wrench, helping reduce field installation time and simplify future maintenance or network expansion.
The AFL LG-600 is well suited for telecommunications, broadband, CATV, utility, rural broadband, and high-count aerial fiber distribution networks.
Key Features
- Supports up to 384 single fusion splices
- Supports up to 1,152 mass fusion splices
- Supports up to 36 mechanical splices
- Suitable for butt or in-line cable entry configurations
- Six individual self-sizing grommeted cable ports
- Expandable to as many as twelve cable entrances
- Patented tongue-in-groove cover sealing system
- Installation and re-entry require only a common can wrench
- Integrated grounding clamp through the aerial hangers
- Cable retention clamps help provide pullout resistance
- UV-resistant engineered thermoplastic construction
- Compatible with multiple AFL single-fiber, mass-fusion, and universal splice trays
- Designed for high-fiber-count outside plant aerial applications
High-Capacity Fiber Splice Management

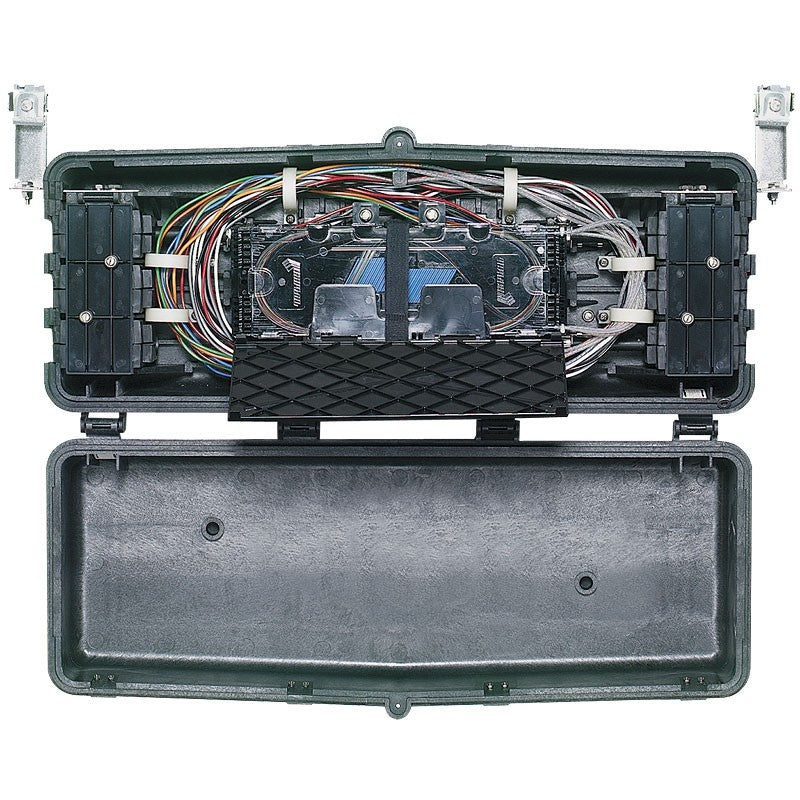

The LG-600 is designed for high-count fiber splicing applications where capacity, organization, and long-term serviceability are critical. Depending on the splice tray configuration, the enclosure can accommodate up to twelve single-fiber splice trays or up to eight mass-fusion, universal, or mechanical splice trays.
This modular tray architecture allows network operators to configure the closure for loose-tube fiber, ribbon fiber, single fusion splicing, mass fusion splicing, or mechanical splicing. The large internal workspace also supports organized fiber routing and storage while helping maintain proper fiber bend radius.
Flexible Cable Entry Configuration
The LG-600 supports both butt-end and in-line cable routing, making it suitable for feeder cable splicing, branch points, express cable applications, restoration projects, and network expansion.
Six standard cable ports are provided. With optional dual grommets and multi-drop grommet kits, the enclosure can support additional cables and as many as twelve cable entrances. Depending on the selected grommet configuration, the closure can accommodate approximately 6 to 24 cables.
Weathertight Outdoor Construction
The closure housing is manufactured from UV-resistant engineered thermoplastic for long-term aerial deployment. AFL's patented tongue-in-groove cover sealing system provides dependable environmental protection while retaining convenient access for inspection, repair, or fiber additions.
The rugged enclosure is designed to protect installed fiber splices from common outside plant environmental conditions, including:
- Rain and moisture
- Dust and airborne contaminants
- Wind-driven debris
- Ultraviolet exposure
- Seasonal temperature changes
- Long-term outdoor weather exposure
Simplified Installation and Re-Entry
The LG-600 is designed to reduce installation complexity in aerial environments. A common can wrench is the only specialized access tool required for installation and re-entry. Self-sizing cable grommets, cable retention hardware, grounding provisions, and aerial hanger brackets further simplify field deployment.
This serviceable design makes it easier to reopen the closure for network additions, maintenance, troubleshooting, or fiber restoration without replacing the enclosure.
Typical Applications
- Outside plant aerial fiber networks
- Telecommunications backbone networks
- High-count feeder and distribution cable splicing
- FTTH and FTTx infrastructure
- Broadband access networks
- CATV and hybrid fiber-coaxial networks
- Utility communications
- Municipal and rural broadband networks
- Campus and industrial aerial fiber systems
- Fiber restoration and network expansion projects
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | AFL |
| Product Series | LightGuard® 600 |
| Model Number | LG-600-U-0 |
| AFL Part Number | FC000029 |
| Product Type | Aerial Weathertight Fiber Optic Splice Closure |
| Installation Environment | Aerial outside plant |
| Cable Entrance Configuration | Butt or in-line |
| Maximum Single Fusion Splice Capacity | 384 splices |
| Maximum Mass Fusion Splice Capacity | 1,152 fibers |
| Maximum Mechanical Splice Capacity | 36 splices |
| Maximum Single-Fusion Splice Trays | 12 trays |
| Maximum Mass-Fusion Splice Trays | 8 trays |
| Maximum Mechanical Splice Trays | 8 trays |
| Standard Cable Ports | 6 |
| Maximum Cable Entrances | 12 with optional expansion grommets |
| Supported Number of Cables | 6 to 24, depending on grommet configuration |
| Included Single-Grommet Cable Diameter Range | 0.44 to 1.00 in. (11.2 to 25.4 mm) |
| Optional Small Dual-Grommet Cable Diameter Range | 0.40 to 0.70 in. (10.0 to 17.8 mm) |
| Optional Large Dual-Grommet Cable Diameter Range | 0.60 to 0.90 in. (15.3 to 22.9 mm) |
| Optional Multi-Drop Grommet Cable Diameter Range | 0.30 to 0.48 in. (7.6 to 12.2 mm) |
| Housing Material | UV-resistant engineered thermoplastic |
| Grounding | Integrated grounding clamp through aerial hangers |
| Cable Retention | Integrated pullout-resistant cable retention clamps |
| Cover Sealing System | Patented tongue-in-groove seal |
| Dimensions | 27.0 × 11.3 × 7.5 in. (690 × 286 × 190.5 mm) |
| Weight | 18.0 lb. (8.16 kg) |
Included Components
- One AFL LG-600 aerial weathertight fiber optic splice closure
- Four cable kits for cable sealing and retention
- Two ground terminals
- Removable bond hardware
- Aerial hanger brackets
Important: Splice trays and cable grounding kits are not included and must be ordered separately according to the required splice capacity and cable configuration.
Compatible AFL Splice Trays
| Tray | Capacity | Maximum Quantity in LG-600 | AFL Part Number |
|---|---|---|---|
| LL-2400 Single Splice Tray | 24 single fusion splices | 12 trays | 91710-06 |
| LL-2448 Universal Splice Tray | 24 single fusion splices or 4 mass fusion splices, up to 48 fibers | 8 trays | 911289-00-02 |
| LL-4848 Mass Splice Tray | 12 mass fusion splices, up to 144 fibers | 8 trays | 911437-00-02 |
| LL-2448-48S Single Splice Tray | 48 single fusion splices | 8 trays | FA000045 |
Optional Accessories
- Large Single Grommet Kit with retention hardware, AFL part number FC000623
- Large Single Grommet Kit, 10 grommets only, AFL part number 91918-00
- Large Dual Grommet Expansion Kit, AFL part number 911406-00-00
- Large 6-Port Drop Cable Kit, AFL part number FC000352
- Adjustable Aerial Hanger Kit, AFL part number 911497-00-00
- Extended Offset Aerial Hanger Kit, AFL part number 91990-00
- SC 6-Pack Bracket Kit, AFL part number FM001294
- Cable Retention Kit, AFL part number FC000356
- Closure Extension Kit, AFL part number 911499-00-00
- 1 × 6 Fiber Router Kit with furcation tubes, AFL part number FC000070
- Cable Grounding Kit, pack of five, AFL part number FC001091
- Mechanical Splice VHB Tape Kit, AFL part number FA000089
Standards and Qualifications
- Telcordia GR-771
- Rural Utilities Service listed
Why Choose the AFL LightGuard LG-600?
The AFL LightGuard LG-600 combines high splice capacity, flexible cable entry, rugged outdoor construction, and straightforward field access in one cost-effective aerial splice closure. Its support for single fusion, mass fusion, and mechanical splice configurations makes it suitable for both traditional and ribbon-based fiber networks.
For service providers, contractors, utilities, and broadband operators requiring dependable protection for high-count aerial fiber splices, the LG-600 provides a proven and highly serviceable outside plant solution.
