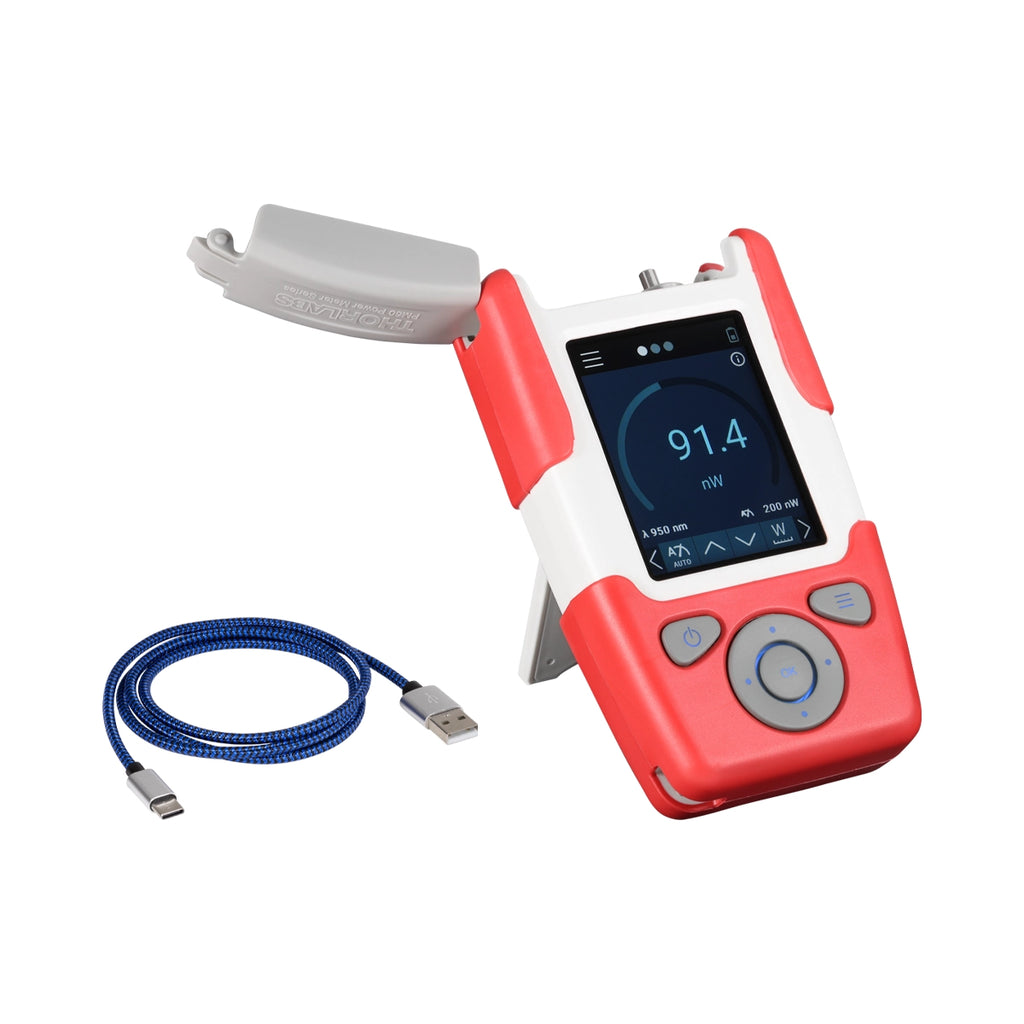

TH-PM60CH Handheld Fiber Optic Power Meter (800–1700 nm, InGaAs Sensor)
The PM60CH Fiber Optic Power Meter is a rugged, professional-grade handheld instrument designed for precise optical power measurements in both laboratory and field environments. Built with an internal InGaAs sensor, it delivers accurate, stable readings across a broad wavelength range from 800 to 1700 nm — making it ideal for telecom, datacom, and general fiber optic testing applications.
Engineered for full-day performance, the PM60CH features a rechargeable 2300 mAh Li-Po battery with USB-C charging, ensuring dependable operation without frequent interruptions. With built-in internal data storage, USB 2.0 remote control capability, and convenient data access via USB, this power meter combines portability with powerful measurement functionality.
Whether you are performing installation, maintenance, troubleshooting, or research measurements, the PM60CH provides reliable optical power monitoring in a durable handheld form factor.
Download TH-PM60CH power meter manual (PDF)
Key Features
- Integrated InGaAs detector for 800 – 1700 nm wavelength coverage
- Wide dynamic range from -55 dBm to +23 dBm (3 nW – 200 mW)
- Rechargeable 2300 mAh Li-Po battery
- USB-C charging cable included
- Remote operation via USB 2.0 interface
- Internal data storage with USB data access
- Rugged handheld design for lab and field use
Model: PM60CH
Sensor Type: Internal InGaAs
Wavelength Range: 800 – 1700 nm
Power Measurement Range:
- -55 dBm to +23 dBm
- 3 nW to 200 mW
Battery:
- 2300 mAh rechargeable Li-Po
- USB-C charging
Interface:
- USB 2.0 for remote operation
- Internal data storage with USB access
Application:
- Fiber optic testing
- Telecom and datacom measurement
- Lab and field use
