Overview

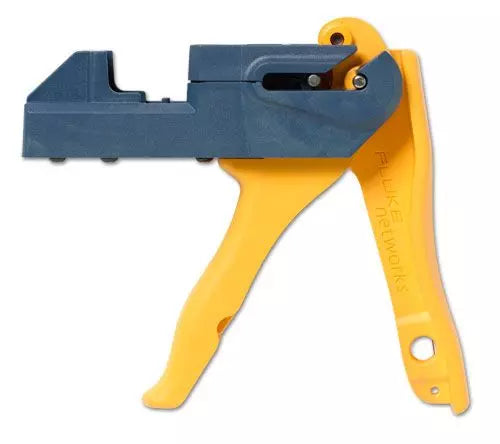

The Fluke Networks JR-LEV-1 JackRapid is a specialized cable termination tool engineered for precise installation of Leviton 41106, 41108, and 5G108 modular jacks. By utilizing a unique squeeze-handle mechanism, the tool seats and terminates all conductors simultaneously, facilitating rapid deployment in high-density or restricted cabling environments.
Key Features
- Integrated Termination Blade: Automatically trims excess wire during the termination cycle, removing the need for a secondary manual trimming step.
- Single-Action Operation: The handle squeeze design performs both seating and termination functions in one motion, reducing repetitive hand strain for the operator.
- Modular Blade System: Features a replaceable blade head design, allowing the tool to be adapted for different jack types beyond the standard Leviton compatibility.
- Compact Ergonomics: Dimensions of 5.5" x 5.5" x 1.75" allow for easier navigation in tight patch panels and wall-mounted termination boxes.
Technical Specifications
| Manufacturer | Fluke Networks |
| Model Number | JR-LEV-1 |
| Part Number | 044X176 |
| Compatibility | Leviton 41106, 41108, and 5G108 |
| Termination Method | Manual handle-actuated simultaneous seating and trimming |
| Physical Dimensions | 5.5" x 5.5" x 1.75" |
| Replaceable Components | Blade head (JR-Series compatible) |
