Overview

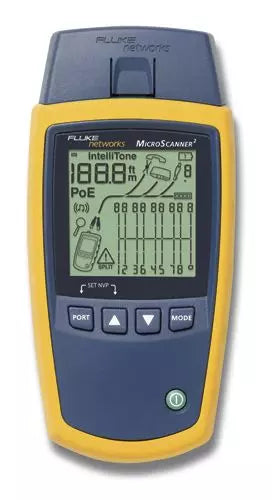

The Fluke Networks MS2-100 MicroScanner2 is a VDV (Voice, Data, Video) cable verifier designed to validate network cable integrity and service availability. It utilizes a digital interface to display comprehensive testing results, including wiremap, pair lengths, distance to faults, cable identification, and information on connected far-end devices, all on a single graphical screen.
Key Features
- Integrated IntelliTone Technology: Features built-in digital and analog toning to locate cabling and wire pairs within various work environments.
- Multi-Service Detection: Detects the presence of telephone voltage, polarity, and PoE (Power over Ethernet) availability on tested jacks.
- Comprehensive Wiremapping: Displays wiremap, pair lengths, and distance to faults for rapid identification of cable breaks or short circuits.
- Versatile Connector Support: Equipped with built-in RJ11, RJ45, and coax ports to accommodate diverse media types without needing extra adapters.
- Digital and Analog Modes: Allows switching between digital mode for high-grade data cabling (CAT 5e, 6, 6a) and analog mode for voice-grade (CAT 3 and below), coax, and alarm wiring.
- Compact Portability: Weighing 13 ounces and measuring 3" x 6.4" x 1.4", the unit is designed for field use.
Technical Specifications
| Model Number | MS2-100 |
| Supported Cable Types | Twisted Pair (UTP, FTP, SSTP), Coaxial, Voice, Security, Alarm, Speaker |
| Test Connectors | RJ45, RJ11, Coaxial (F-connector) |
| Display Type | LCD with backlight |
| Toning Modes | IntelliTone Digital, Analog |
| Detection Capabilities | Telephone voltage, Polarity, PoE availability, Far-end switch detection |
| Unit Dimensions | 3" x 6.4" x 1.4" |
| Unit Weight | 13 oz |
| Power Requirements | 2 AA Alkaline batteries |
