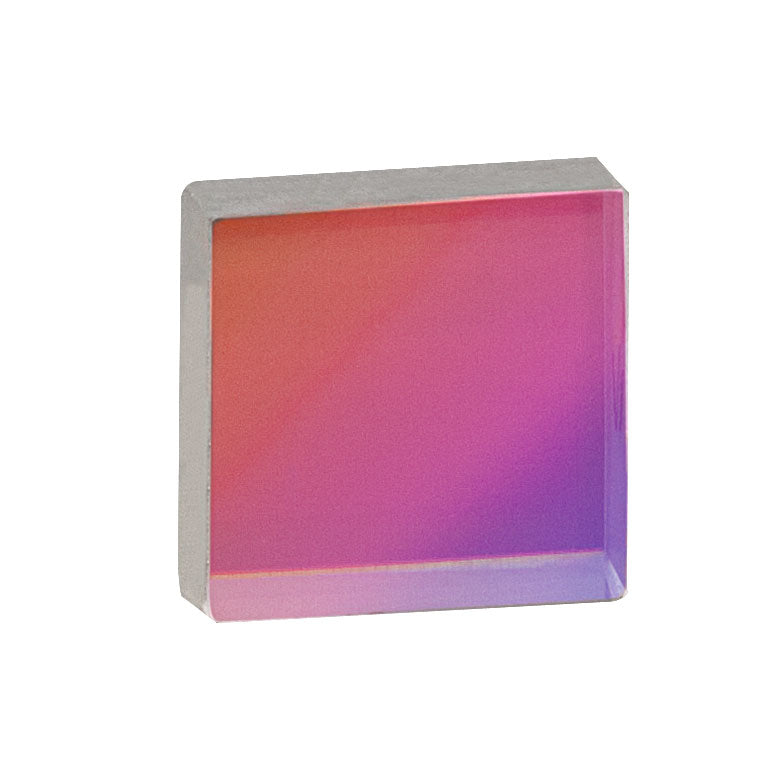

GT13-03 - Visible Transmission Grating, 300 Grooves/mm, 17.5° Groove Angle, 12.7 mm x 12.7 mm
GT13-03 - Visible Transmission Grating, 300 Grooves/mm, 17.5° Groove Angle, 12.7 mm x 12.7 mm
Roll over image to zoom in Click on image to zoom
GT13-03 - Visible Transmission Grating, 300 Grooves/mm, 17.5° Groove Angle, 12.7 mm x 12.7 mmGT13-03 - Visible Transmission Grating, 300 Grooves/mm, 17.5° Groove Angle, 12.7 mm x 12.7 mm

GT13-03 - Visible Transmission Grating, 300 Grooves/mm, 17.5° Groove Angle, 12.7 mm x 12.7 mm

Fosco ConnectSKU: T-GT13-03
Price:
$ 142.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

GT13-03 - Visible Transmission Grating, 300 Grooves/mm, 17.5° Groove Angle, 12.7 mm x 12.7 mm

Product Drawing

  • Optimum Performance in the Visible Spectrum
  • Ideal for Fixed Grating Applications such as Spectrographs
  • Schott B270 Substrate
  • Custom Sizes Available Upon Request
Common Specifications
Substrate
Material		 Schott B270
Thickness 3 mm Nominal
Dimensional
Tolerance		 ± 0.5 mm
Thickness
Tolerance		 ± 0.5 mm
