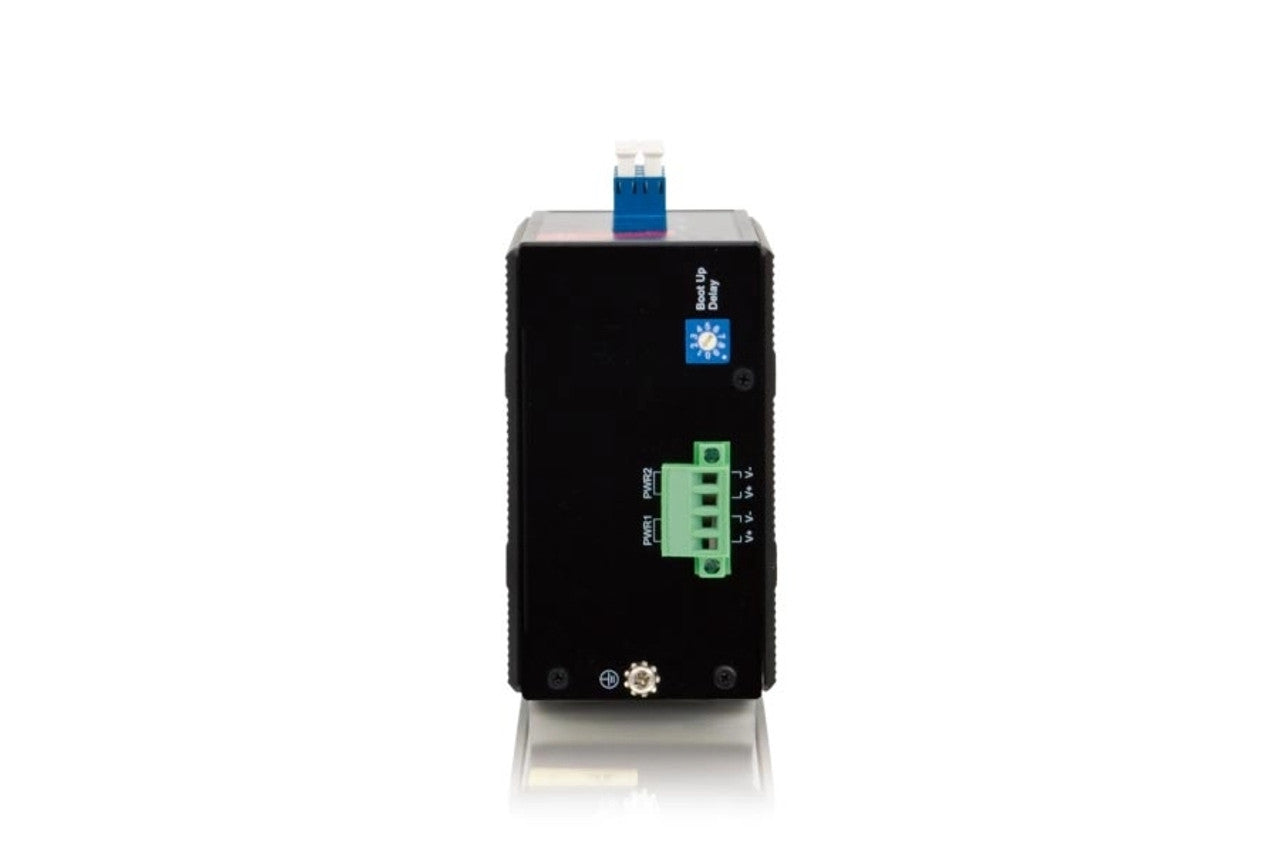

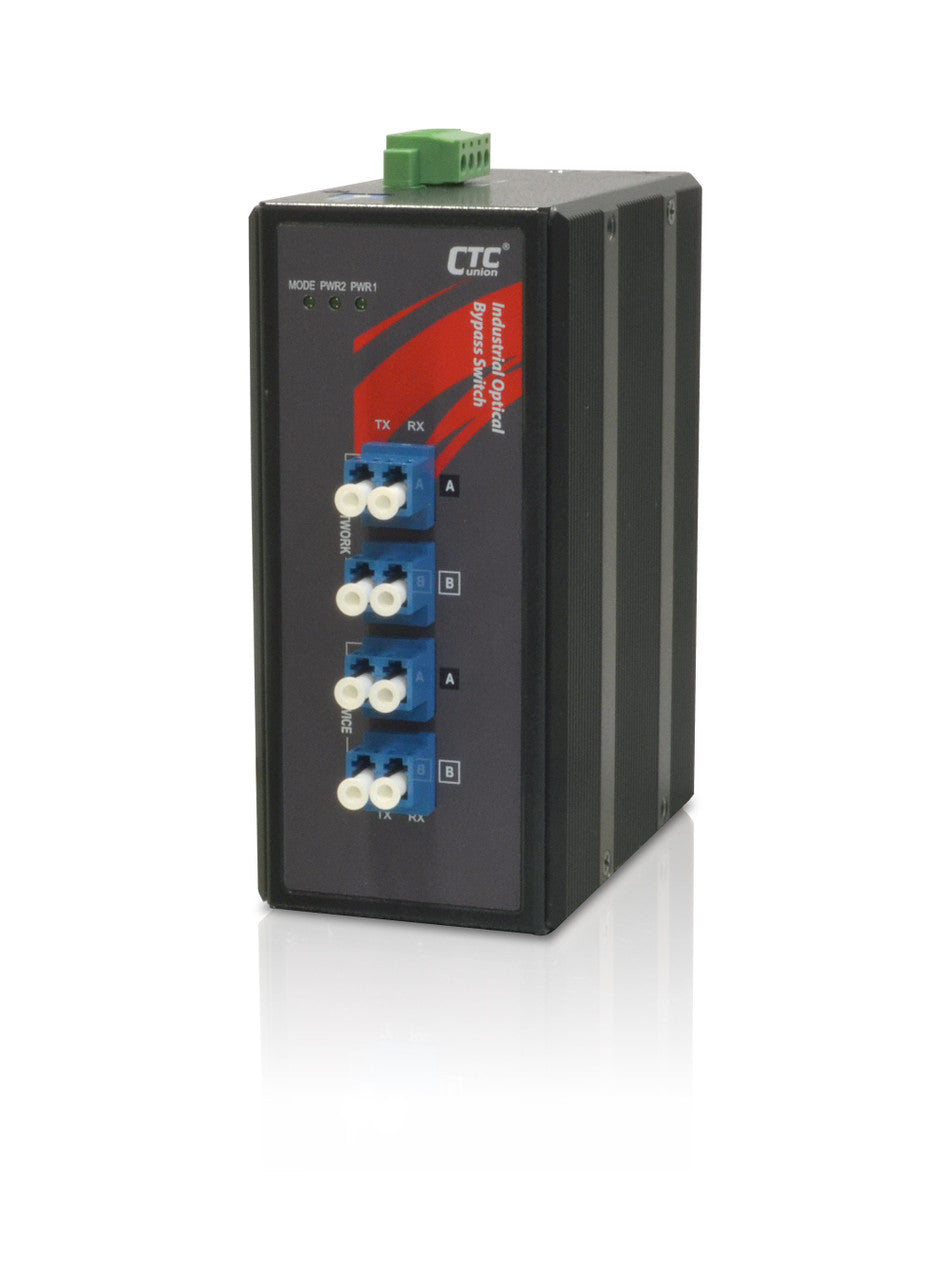

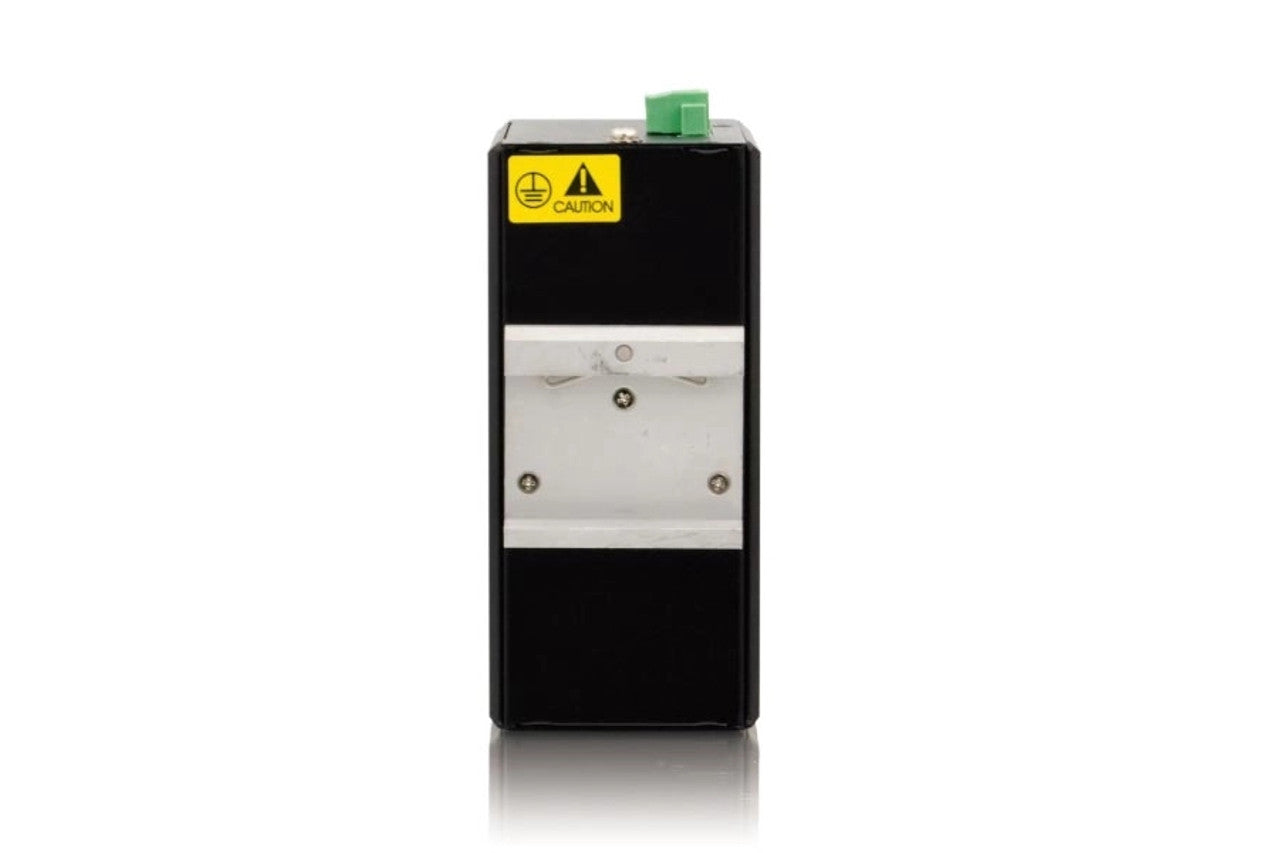

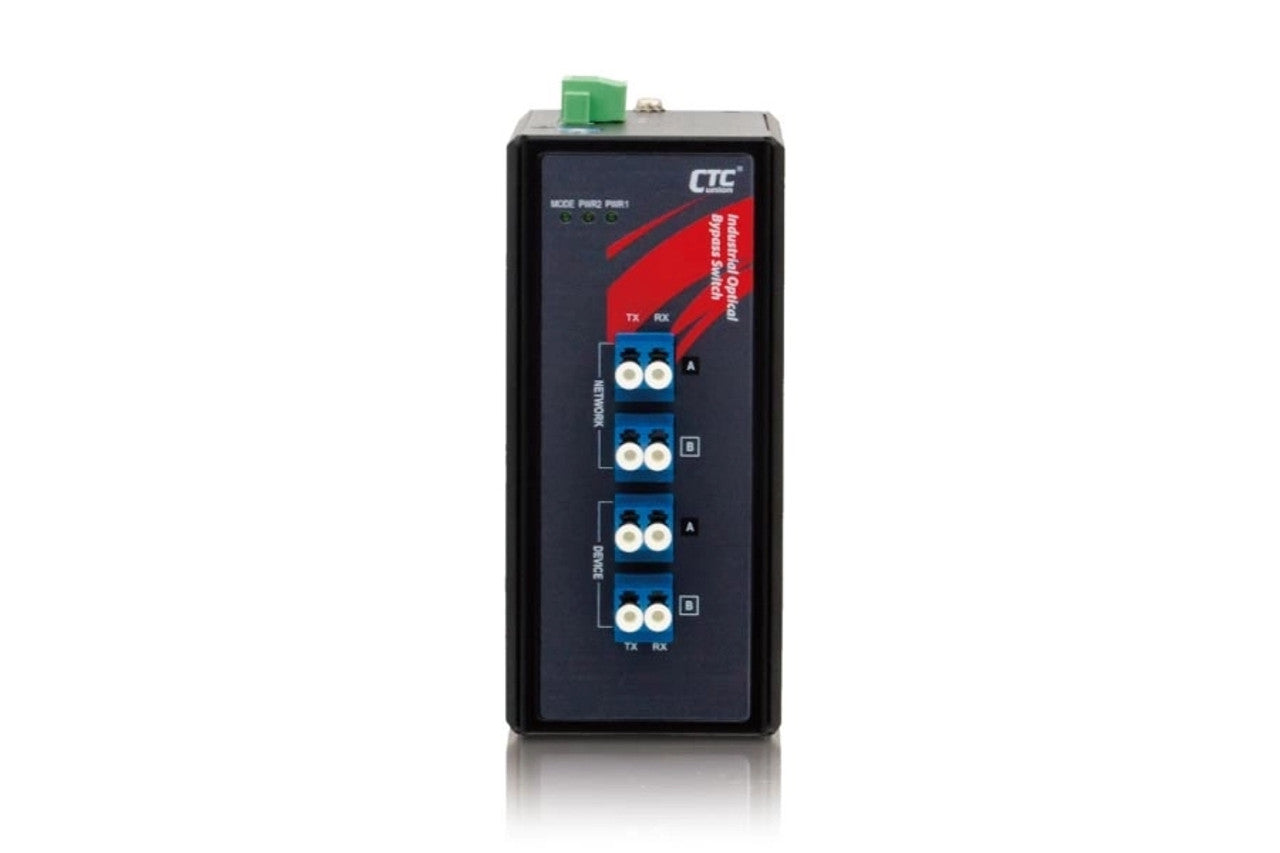

IBP-202-SLC - Optical Bypass Switch duplex SMF path, Industrial hardened, DIN rail mount, -20 to +75 C temp, LC/UPC connectors

Note: SFP transceivers are NOT included with the Optical Bypass Switch.

The IBP-202 can support any data rate for the optical ports (100M, 1G, 2.5G, 10G, 25G, 40G, 100G, 200G).

Product description

The IBP-202 Optical Bypass Switch is an industrial grade external bypass switch for optical-node failure in fiber optical network infrastructure.

The IBP-202 Optical Bypass Switch prevents and saves communication from network failures during power loss.

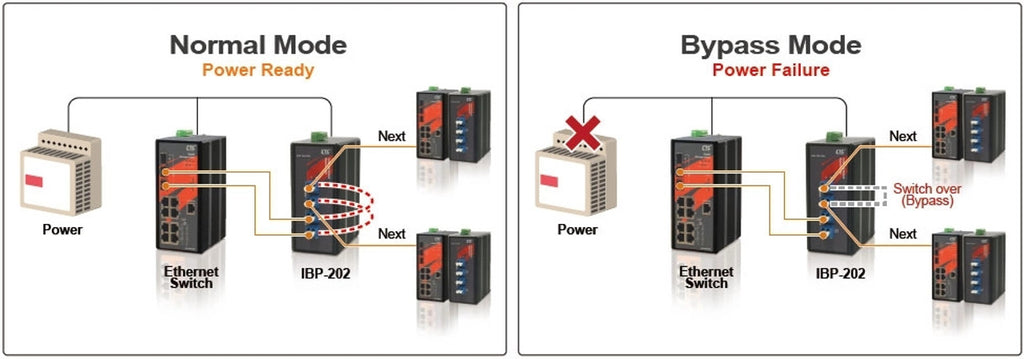

When power failure occurs, the Bypass switch will swiftly set to bypass mode and isolate the main-network from the local networking device (see examples of application in the product gallery).

Bypass switches are commonly used in some major optical networks, such as in railway communication systems, factory automation, and power substation, where fiber link failures are not tolerated.

Features

• Low insertion loss (<1.5dB)
• Redundant dual DC input power 12/24/48VDC (9.6 ~ 60VDC)
• IP30 rugged metal housing and fanless
• Wide operating temperature -20 ~ 70°C

Additional information on IBP-202-SLC: PDF datasheet; PDF Installation Manual.
