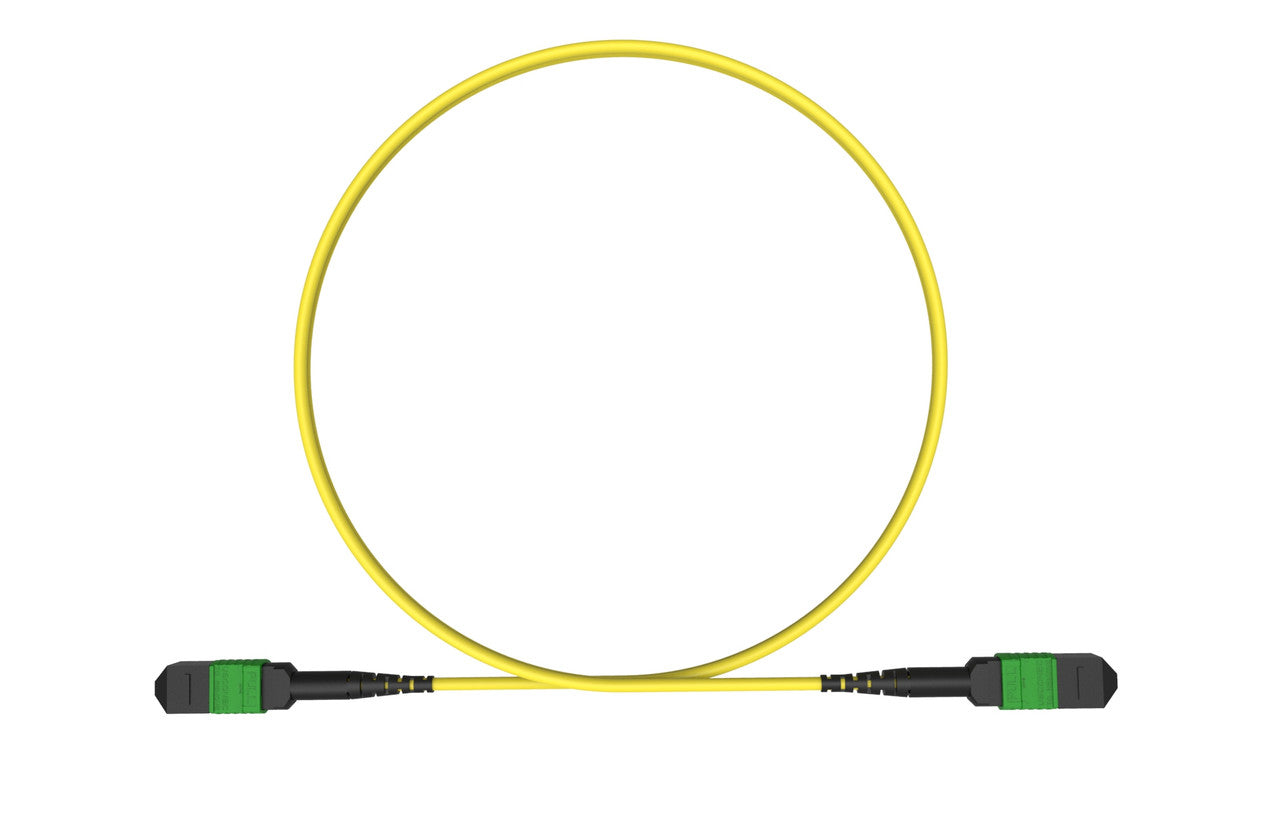

MPO female to MPO female fiber optic patch cord cable, 12 strands, Elite Low IL, SMF, 10m length, B polarity, per 10 meters

Overview

This 12-strand MPO female to MPO female patch cord is designed for high-density fiber optic environments. It utilizes Elite grade connectors, which provide lower insertion loss compared to standard MPO connectors. The cable is configured with B polarity, which cross-connects fibers from Pin 1 at one end to Pin 12 at the other in a linear fashion, specifically Pin 1 to Pin 12, Pin 2 to Pin 11, and so on. Each assembly is factory-tested for individual strand performance.

Key Features

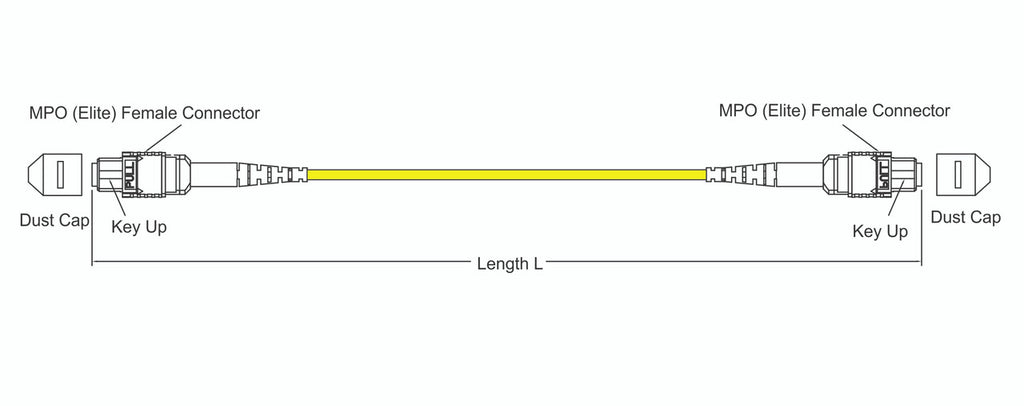

• Elite Grade MPO Connectivity: Features high-precision, low insertion loss connectors to maintain signal integrity in high-density pathways.
• 12-Strand SMF G.652 Core: Utilizes standard single-mode G.652 optical fiber, supporting compatibility with various data rate requirements.
• Factory Tested and Verified: Each individual assembly undergoes manual testing, with the measured loss for every one of the 12 strands documented on the product label.
• B Polarity Configuration: Designed with a pinned-to-pinned crossover (Pin 1 to Pin 12) for specific polarity-managed deployments in data centers.

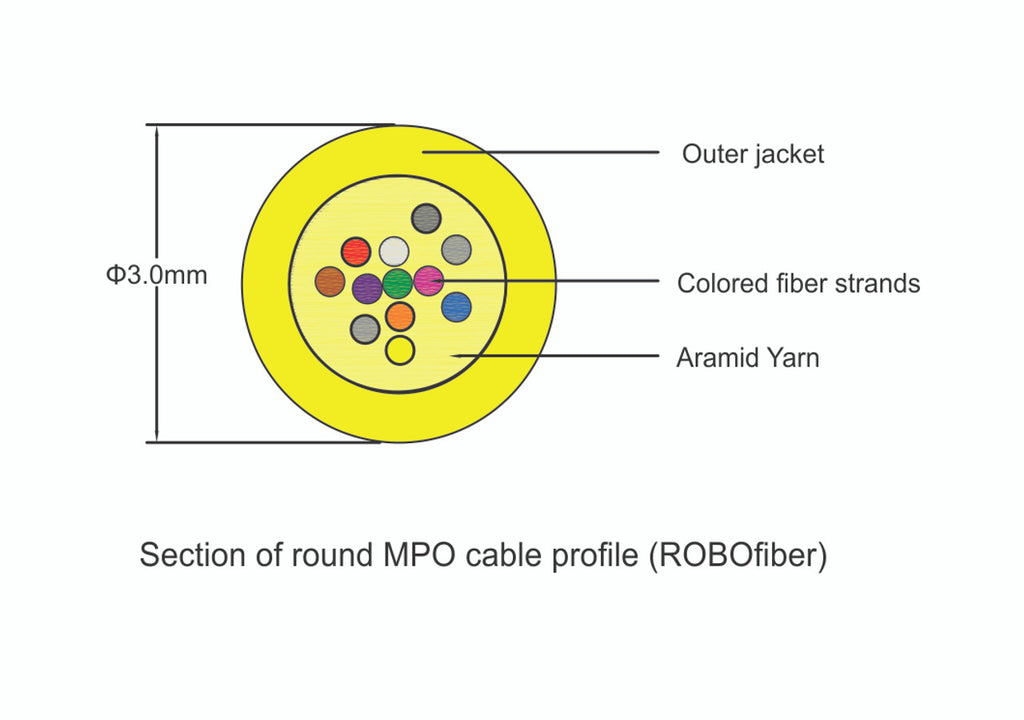

• Protective 3.0mm Round Jacket: Features a robust 3.0mm round, yellow-colored outer jacket suitable for identifying single-mode fiber installations.

Technical Specifications

PDF spec sheet
