| Part number |
PLT1.5I-M100 |
 RoHS Compliancy Status |
Compliant |
|
Part Description |

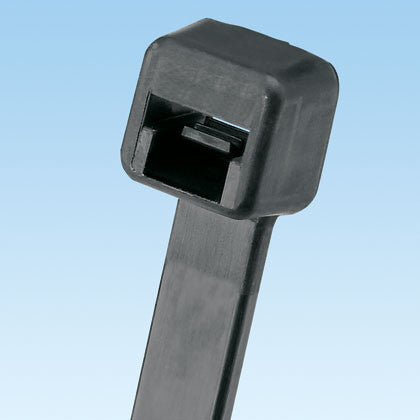

Cable Tie, 5.6", Intermediate cross section
|
|
Product Type |
Cable Ties |
|
Material |
Weather Resistant Polypropylene |
|
Color |
Black |
|
CSA Certified |
No |
|
UL Listed (File #E56854) |
No |
|
UL Recognized (File #E56854) |
No |
|
Length (In.) |
5.6 |
|
Length (mm) |
142 |
|
Width (In.) |
0.142 |
|
Width (mm) |
3.6 |
|
CE Compliant |
Yes |
|
Cross Section |
Intermediate |
|
Head Height (In.) |
0.180 |
|
Head Height (mm) |
4.6 |
|
Head Width (In.) |
0.240 |
|
Head Width (mm) |
6.1 |
|
Locking Style |
Locking |
|
Material Flammability Rating |
HB |
|
Max. Bundle Diameter (In.) |
1.38 |
|
Max. Bundle Diameter (mm) |
35 |
|
Max. Continuous Use Temperature |
239øF (115øC) |
|
Min. Bundle Diameter (In.) |
0.06 |
|
Min. Bundle Diameter (mm) |
1.5 |
|
Min. Loop Tensile Strength (Lbs.) |
18 |
|
Min. Loop Tensile Strength (N) |
80 |
|
Plenum-Rated |
No |
|
Pricing Description |
Cable Tie, 5.6"L (142mm), Intermediate, Weather Resistant Polypropylene, Black |
|
Thickness (In.) |
0.045 |
|
Thickness (mm) |
1.1 |
|
Tool |
GTS, GTSL, GS2B, PTS, PPTS, STS2 |
|
Tool Setting |
3 |
