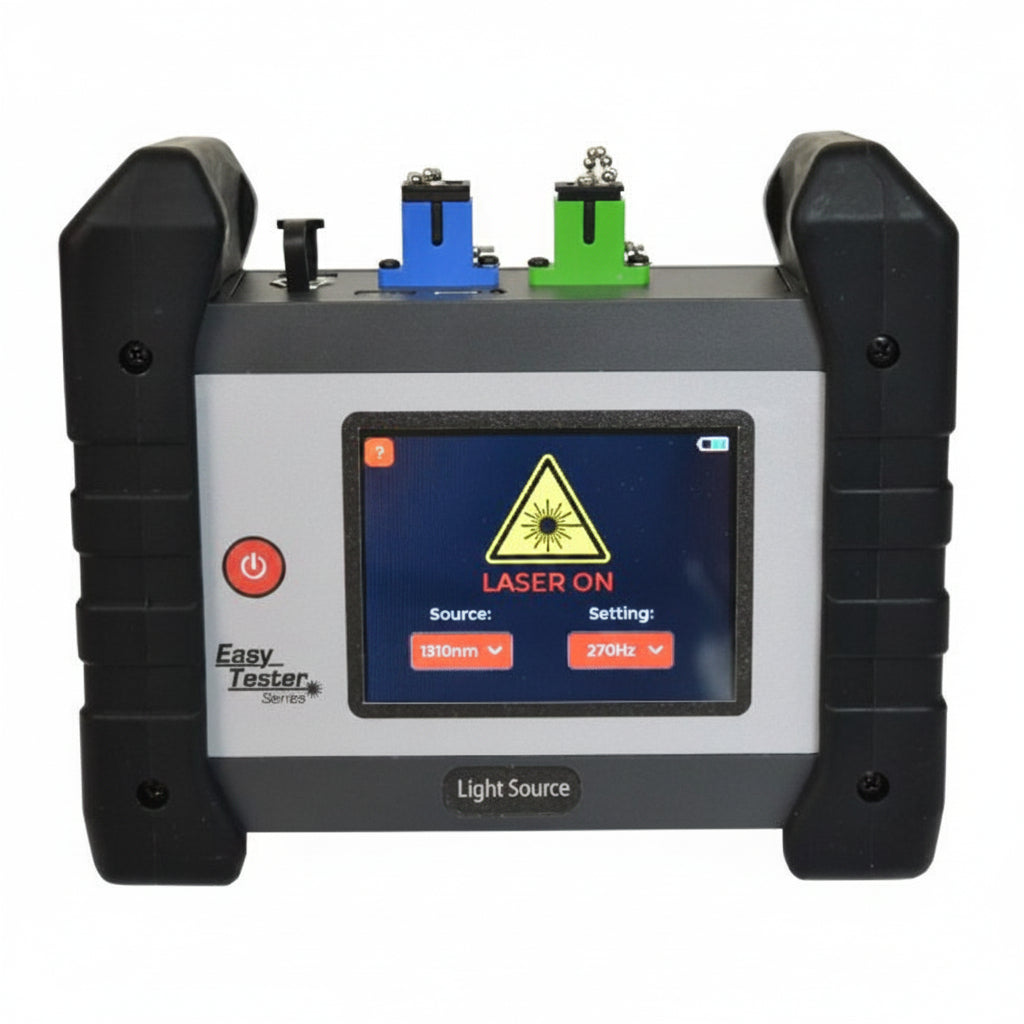

The Quad Singlemode and Multimode Light Source provides exceptional versatility and performance with its four laser wavelengths (850nm, 1300nm, 1310nm, and 1550nm). Offering a minimum output of -1dBm (typical 0dBm), this lightweight yet robust optical testing device is designed for seamless field and lab operations. It features an intuitive touchscreen interface and a high-resolution 3.2-inch color display for easy-to-read results.
Equipped with a built-in Visual Fault Locator (VFL) and auto-wavelength switching capabilities, this source coordinates seamlessly with compatible power meters to expedite loss testing. It comes standard with SC/APC and SC/UPC adapter ports, an ergonomic rugged casing, and an impressive battery life of over 40 hours.
Key Features
- Simultaneous support for four wavelengths (850, 1300, 1310, and 1550nm)
- Integrated 3.2-inch color touchscreen display
- Built-in Visual Fault Locator (VFL) for quick fiber troubleshooting
- Auto-wavelength switching for faster multi-wavelength measurements
- Over 40 hours of continuous battery life
- Ruggedized, field-ready construction
Technical Specifications
| Parameter | Specification |
|---|---|
| Wavelengths Supported | 850 / 1300 / 1310 / 1550 nm |
| Fiber Compatibility | Singlemode (SM) & Multimode (MM) |
| Output Power | Min: -1 dBm / Typ: 0 dBm |
| Dynamic Range | -70 dBm to +5 dBm |
| Dynamic Range (CATV) | -45 dBm to +23 dBm |
| Display | 3.2-inch Color Touchscreen |
| Built-in VFL | Yes |
| Battery Life | 40+ Hours |
| Connector Interface | SC/APC and SC/UPC Adapter Ports |
