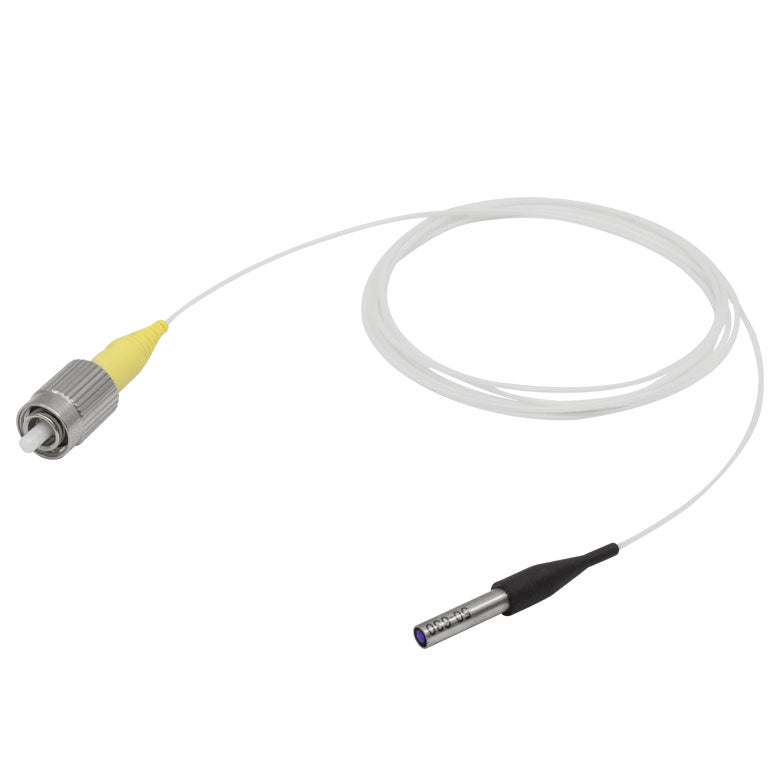

T-50-630-FC - Single Mode GRIN Fiber Collimator, 630 nm, FC/PC Connector
Roll over image to zoom in Click on image to zoom
T-50-630-FC - Single Mode GRIN Fiber Collimator, 630 nm, FC/PC Connector

T-50-630-FC - Single Mode GRIN Fiber Collimator, 630 nm, FC/PC Connector

Fosco ConnectSKU: T-50-630-FC
Price:
$ 325.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

T-50-630-FC - Single Mode GRIN Fiber Collimator, 630 nm, FC/PC Connector

Product Drawing

  • Couple and Collimate Light In or Out of a Fiber
  • Lens Surface is AR Coated for 630, 780, 850, 980, 1064, 1310, or 1550 nm
  • Ø1.8 mm Clear Aperture
  • 300 mW Maximum Power
  • Pigtailed to SM Fiber with an Optional FC/PC or FC/APC Connector
  • Connector  FC/PC
  • Wavelength Range 620 - 640 nm
  • Alignment Wavelength 630 nm
  • Fiber 1 m of SM600
  • Pair Insertion Loss <2.0 dB
  • Pair Performance
  • Insertion Loss <0.1 dB
  • Return Loss (Min) 50 dB
