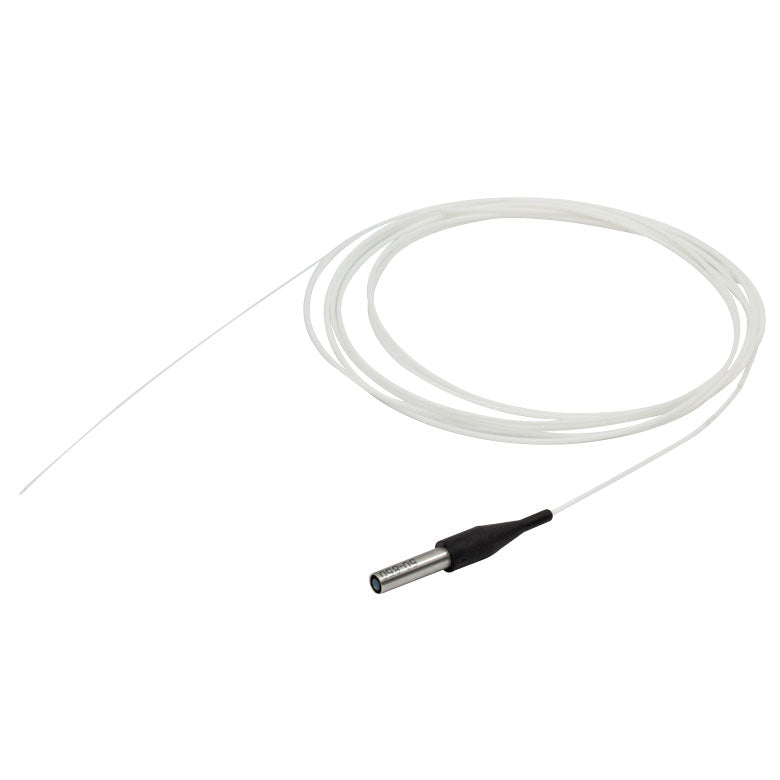

T-50-850 - Single Mode GRIN Fiber Collimator, 850 nm, No Connector
T-50-850 - Single Mode GRIN Fiber Collimator, 850 nm, No Connector
Roll over image to zoom in Click on image to zoom
T-50-850 - Single Mode GRIN Fiber Collimator, 850 nm, No ConnectorT-50-850 - Single Mode GRIN Fiber Collimator, 850 nm, No Connector

T-50-850 - Single Mode GRIN Fiber Collimator, 850 nm, No Connector

Fosco ConnectSKU: T-50-850
Price:
$ 225.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

T-50-850 - Single Mode GRIN Fiber Collimator, 850 nm, No Connector

Product Drawing

  • Couple and Collimate Light In or Out of a Fiber
  • Lens Surface is AR Coated for 630, 780, 850, 980, 1064, 1310, or 1550 nm
  • Ø1.8 mm Clear Aperture
  • 300 mW Maximum Power
  • Pigtailed to SM Fiber with an Optional FC/PC or FC/APC Connector
  • Connector  Scissor Cut
  • Wavelength Range 830 - 870 nm
  • Alignment Wavelength 850 nm
  • Fiber 1 m of HI780
  • Pair Insertion Loss <0.35 dB

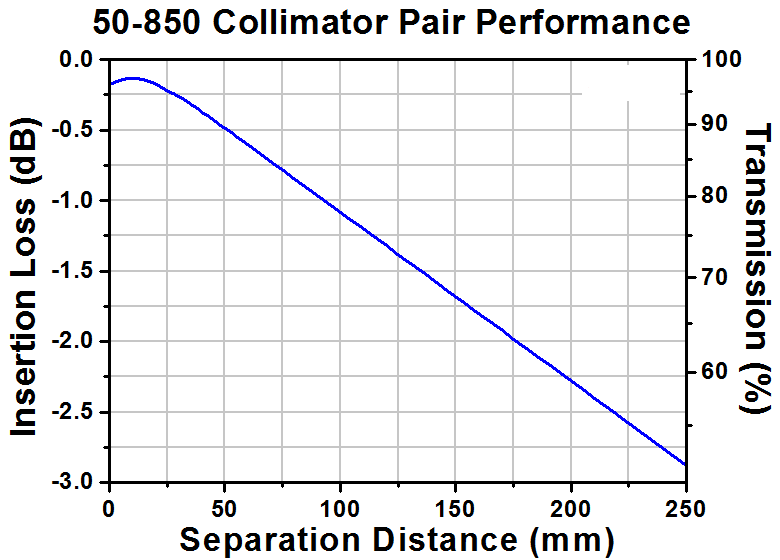

  • Pair Performance
  • Insertion Loss <0.1 dB
  • Return Loss (Min) 55 dB
