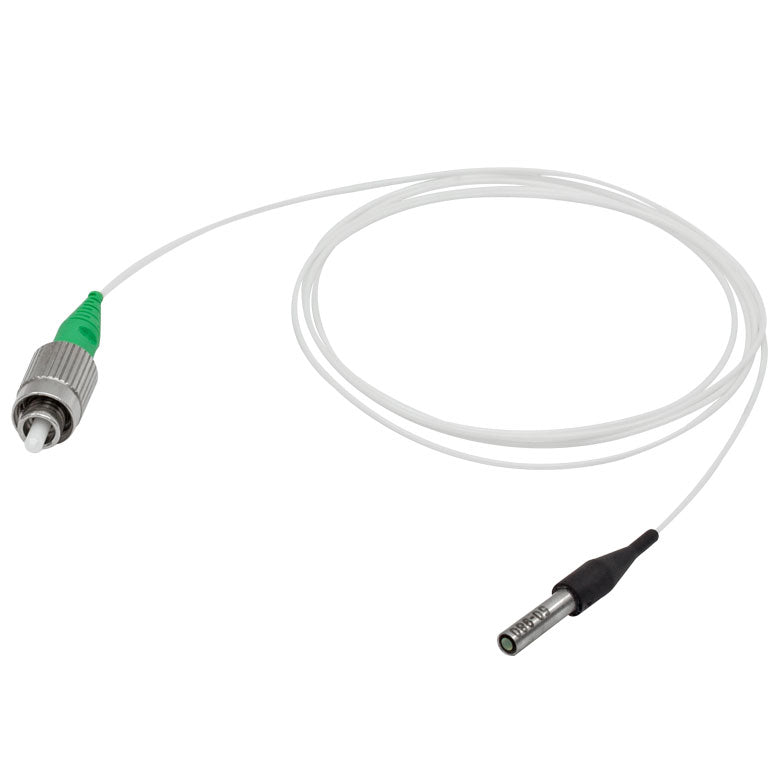

T-50-980-APC - Single Mode GRIN Fiber Collimator, 980 nm, FC/APC Connector

T-50-980-APC - Single Mode GRIN Fiber Collimator, 980 nm, FC/APC Connector

Product Drawing

• Couple and Collimate Light In or Out of a Fiber
• Lens Surface is AR Coated for 630, 780, 850, 980, 1064, 1310, or 1550 nm
• Ø1.8 mm Clear Aperture
• 300 mW Maximum Power
• Pigtailed to SM Fiber with an Optional FC/PC or FC/APC Connector
• Connector FC/APC
• Wavelength Range 950 - 1010 nm
• Alignment Wavelength 980 nm
• Fiber 1 M of HI1060
• Pair Insertion Loss <0.3 dB
• Pair Performance
• Insertion Loss <0.1 dB
• Return Loss (Min) 60 dB
