T-BCP42R - 25 x 36 mm UVFS Beamsplitter Compensator Plate, 45° AOI AR Coating: 350 - 1100 nm, t = 1 mm
T-BCP42R - 25 x 36 mm UVFS Beamsplitter Compensator Plate, 45° AOI AR Coating: 350 - 1100 nm, t = 1 mm
T-BCP42R - 25 x 36 mm UVFS Beamsplitter Compensator Plate, 45° AOI AR Coating: 350 - 1100 nm, t = 1 mm
Roll over image to zoom in Click on image to zoom
T-BCP42R - 25 x 36 mm UVFS Beamsplitter Compensator Plate, 45° AOI AR Coating: 350 - 1100 nm, t = 1 mmT-BCP42R - 25 x 36 mm UVFS Beamsplitter Compensator Plate, 45° AOI AR Coating: 350 - 1100 nm, t = 1 mmT-BCP42R - 25 x 36 mm UVFS Beamsplitter Compensator Plate, 45° AOI AR Coating: 350 - 1100 nm, t = 1 mm

T-BCP42R - 25 x 36 mm UVFS Beamsplitter Compensator Plate, 45° AOI AR Coating: 350 - 1100 nm, t = 1 mm

Fosco ConnectSKU: T-BCP42R
Price:
$ 220.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

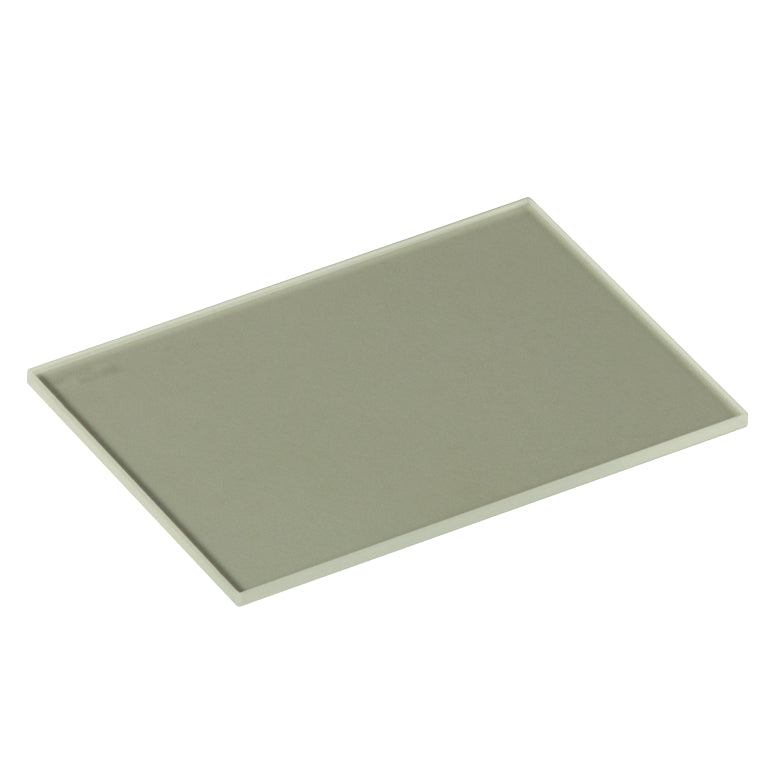

T-BCP42R - 25 x 36 mm UVFS Beamsplitter Compensator Plate, 45° AOI AR Coating: 350 - 1100 nm, t = 1 mm

Product Drawing

Wavelength Range of AR Coating 350 nm - 1100 nm

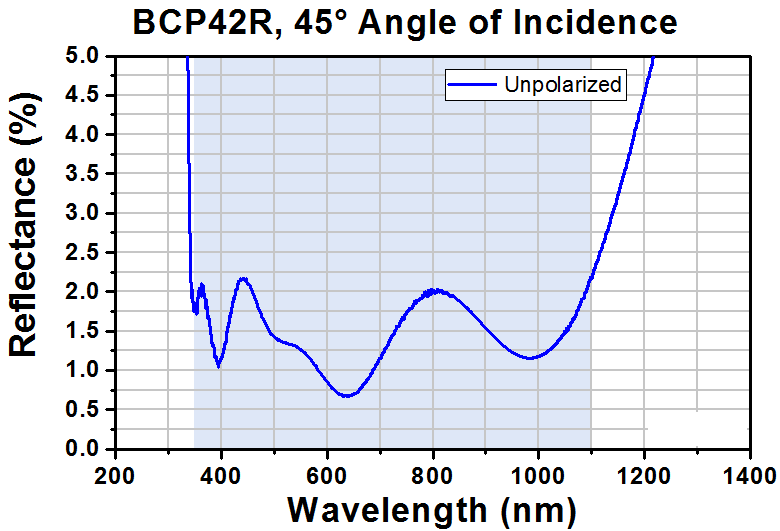

Average Reflectance Over Coating Range  <2.0% at 45° AOI

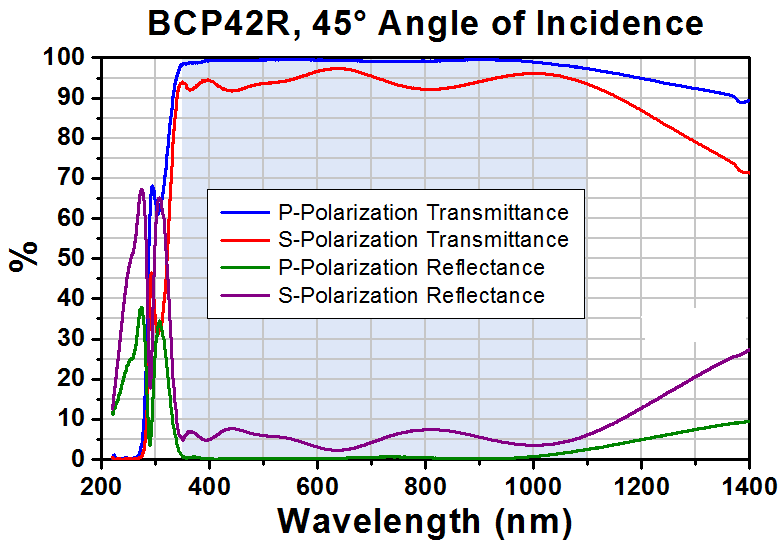

45° AOI Transmittance and  Reflectance Data

Common Specifications
Substrate Material UV Fused Silica
Dimensions 25 mm x 36 mm x 1 mm
Dimensional Tolerance ±0.1 mm
Clear Aperture >22.5 mm x 32.4 mm
Surface Quality 40-20 Scratch-Dig
Transmitted Wavefront Error <λ/4 at 633 nm
Parallelism <3 arcmin
