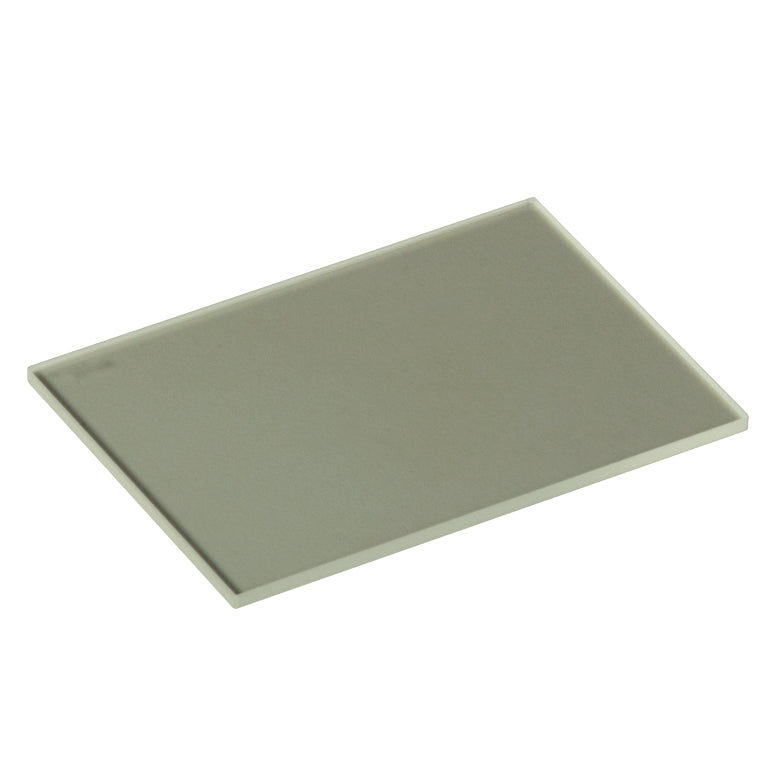

T-BCP43R - 25 x 36 mm UVFS Beamsplitter Compensator Plate, 45° AOI AR Coating: 400 - 700 nm, t = 1 mm

T-BCP43R - 25 x 36 mm UVFS Beamsplitter Compensator Plate, 45° AOI AR Coating: 400 - 700 nm, t = 1 mm

Product Drawing

• AR Coatings Customized for 45° AOI, with Broadband Wavelength Ranges:
  • 250 nm - 450 nm with <1.0% at 45° AOI
  • 350 nm - 1100 nm with <2.0% at 45° AOI
  • 400 nm - 700 nm with <1.0% at 45° AOI
  • 600 nm - 1700 nm with <1.5% at 45° AOI
  • 700 nm - 1100 nm with <1.0% at 45° AOI
  • 1200 nm - 1600 nm with <1.0% at 45° AOI
• Ø1" Round and 25 mm x 36 mm Rectangular Options
• Round Compensation Plates have 30 arcmin Back Surface Wedge to Minimize Ghosting
• UV Fused Silica Substrate (Transmission Curve)
• Wavelength Range of AR Coating 400 nm - 700 nm

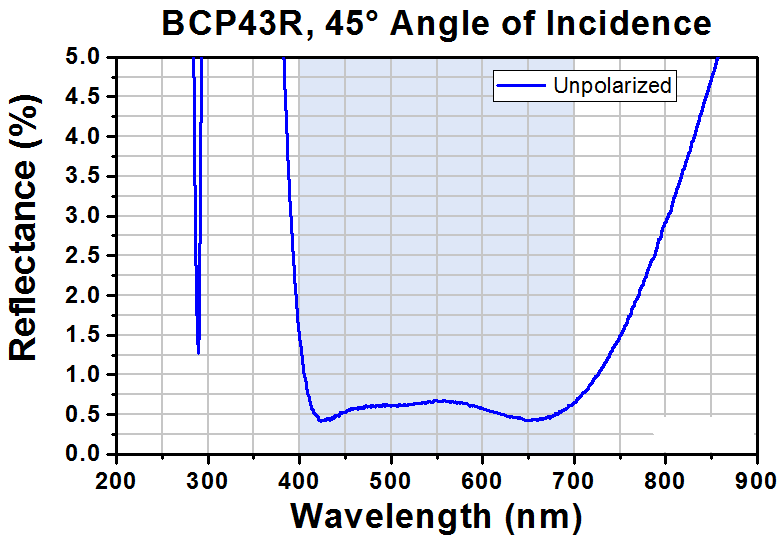

• Average Reflectance Over Coating Range  <1.0% at 45° AOI

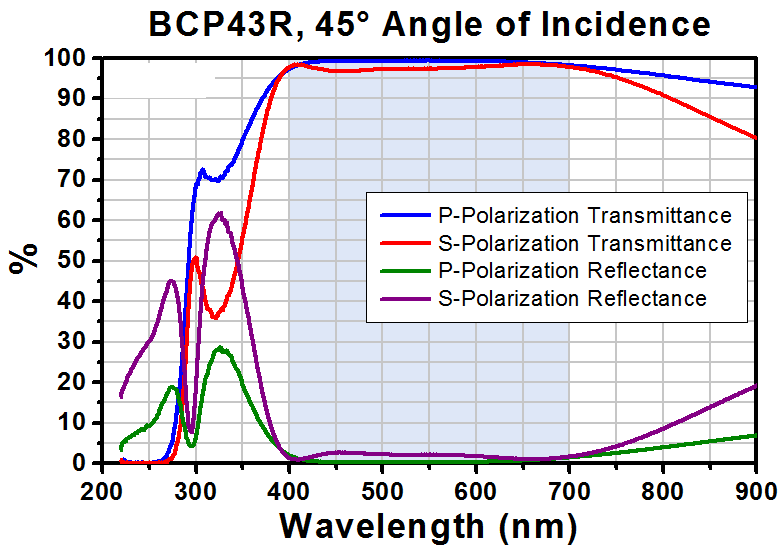

• 45° AOI Transmittance and  Reflectance Data
