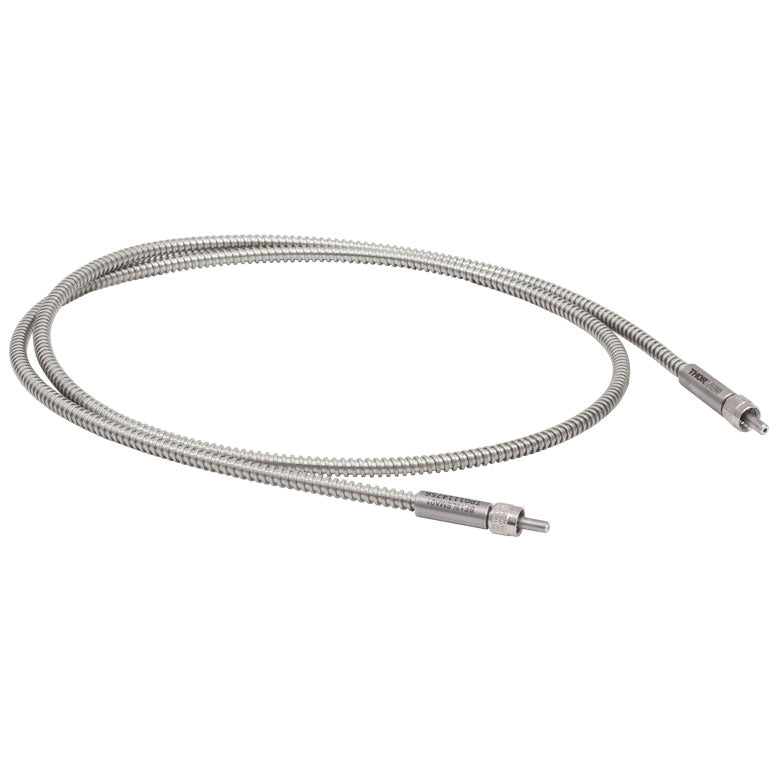

T-BF13LSMA01 - Round Fiber Bundle, Ø1.3 mm, Low OH, SMA to SMA, 1 m
Roll over image to zoom in Click on image to zoom
T-BF13LSMA01 - Round Fiber Bundle, Ø1.3 mm, Low OH, SMA to SMA, 1 m

T-BF13LSMA01 - Round Fiber Bundle, Ø1.3 mm, Low OH, SMA to SMA, 1 m

Fosco ConnectSKU: T-BF13LSMA01
Price:
$ 420.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

T-BF13LSMA01 - Round Fiber Bundle, Ø1.3 mm, Low OH, SMA to SMA, 1 m

Product Drawing

  • 1 or 2 m Long Bundles of 7 or 19
    Multimode Fibers
  • SMA905 Connectors on Both Ends
  • High-OH and Low-OH Versions
  • No Broken Fibers
  • Custom Versions Available
Aperture Ø1.3 mm
Wavelength Range 400 - 2200 nm 250 - 1200 nm
NA 0.22
# of Fibers 19
Core Diameter 200 ± 8 µm
Cladding Diameter 240 ± 5 µm
Effective Core Diameter 1126 µm
hort-Term Bend Radius 26 mm
Long-Term Bend Radius 52mm
Usable Area 46%
Length Tolerance +0.075 m / -0 m
Maximum Temperature 80 °C
