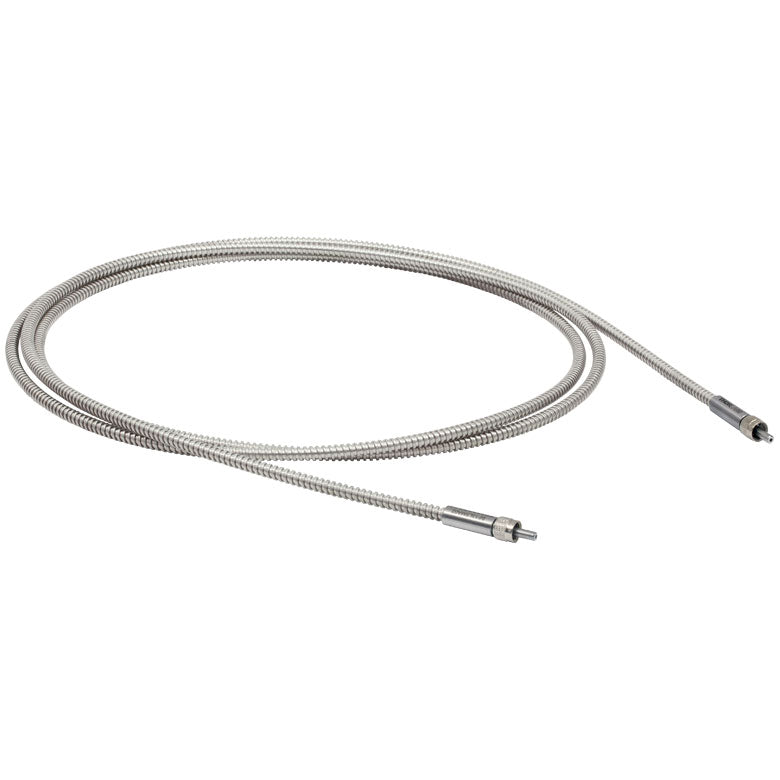

T-BF13LSMA02 - Round Fiber Bundle, Ø1.3 mm, Low OH, SMA to SMA, 2 m

T-BF13LSMA02 - Round Fiber Bundle, Ø1.3 mm, Low OH, SMA to SMA, 2 m

Product Drawing

• 1 or 2 m Long Bundles of 7 or 19
  Multimode Fibers
• SMA905 Connectors on Both Ends
• High-OH and Low-OH Versions
• No Broken Fibers
• Custom Versions Available
• Aperture  Ø1.3 mm
• Wavelength Range 400 - 2200 nm
• NA 0.22
• # of Fibers 19
• Core Diameter 200 ± 8 µm
• Cladding Diameter 240 ± 5 µm
• Effective Core Diameter 1126 µm
• Fiber FG200LCC
• Fiber Attenuation Plot
• Short-Term Bend Radius 26 mm
• Long-Term Bend Radius 52 mm
• Usable Area 46%
• Length Tolerance +0.075 m / -0 m
• Maximum Temperature 80 °C
