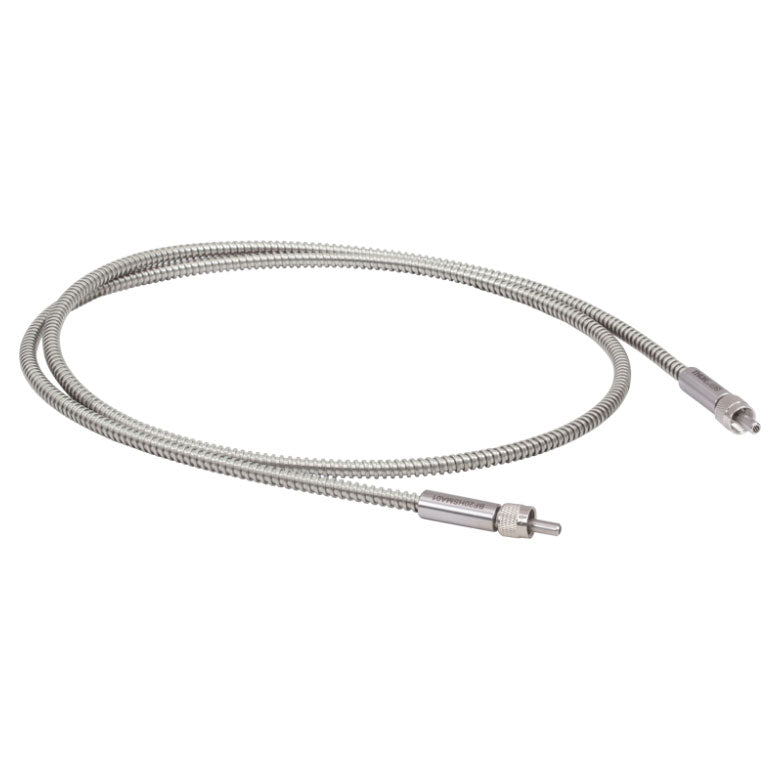

T-BF20HSMA01 - Round Fiber Bundle, Ø2.0 mm, High OH, SMA to SMA, 1 m

T-BF20HSMA01 - Round Fiber Bundle, Ø2.0 mm, High OH, SMA to SMA, 1 m

Product Drawing

• 1 or 2 m Long Bundles of 7 or 19
  Multimode Fibers
• SMA905 Connectors on Both Ends
• High-OH and Low-OH Versions
• No Broken Fibers
• Custom Versions Available
• Aperture Ø2.0 mm
• Wavelength Range 250 - 1200 nm
• NA 0.22
• # of Fibers 7
• Core Diameter 550 ± 19 µm
• Cladding Diameter 600 ± 10 µm
• Effective Core Diameter 1750 µm
• Fiber FG550UEC
• Fiber Attenuation Plot
• Short-Term Bend Radius 48 mm
• Long-Term Bend Radius 96 mm
• Usable Area 56%
• Length Tolerance +0.075 m / -0 m
• Maximum Temperature 80 °C
