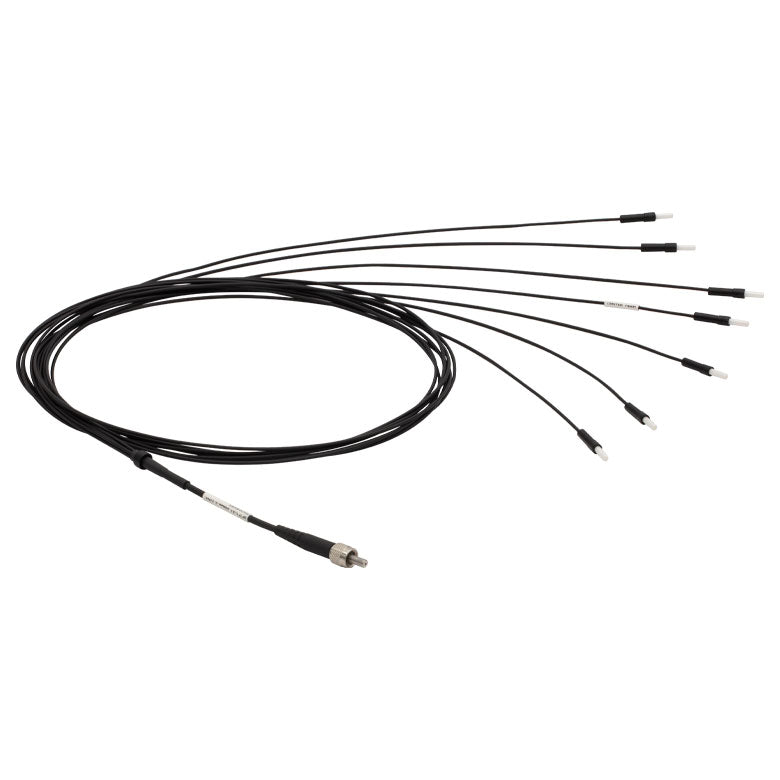

T-BF7F2LS1 - 1x7 Fiber Bundle, Ø200 µm Core, 0.39 NA, Low OH, SMA to Ø2.5 mm Ferrules, 1 m Long

T-BF7F2LS1 - 1x7 Fiber Bundle, Ø200 µm Core, 0.39 NA, Low OH, SMA to Ø2.5 mm Ferrules, 1 m Long

Product Drawing

• 1 m Long Fan-Out Bundles of 7 Multimode Fibers
• Choose from Two Ferrule Sizes for Specimen Side: Ø1.25 mm or Ø2.5 mm
• SMA905 Connector on the Non-Specimen Side
• Ø200 µm Core Multimode Fiber with a 0.22 NA or 0.39 NA
• Ferrule Size Ø2.5 mm
• Common Connector SMA905
• Fiber Type FT200EMT
• # of Fibers 7
• Hydroxyl Content  Low OH
• Wavelength Range (Click for Plot) 400 - 2200 nm
• Core Diameter 200 ± 5 µm
• Cladding Diameter 225 ± 5 µm
• NA 0.39
• Compatible Cannulae  CFMC12 Ceramic and  CFM12 Stainless Steel
• Coating Diameter 500 ± 30 μm
• Max Core Offset 5 µm
• Bend Radius (Short Term / Long Term ) 21 mm / 42 mm
• Tubing Diameter  ~Ø1.4 mm

• Connectors SMA905 to Ferrule
