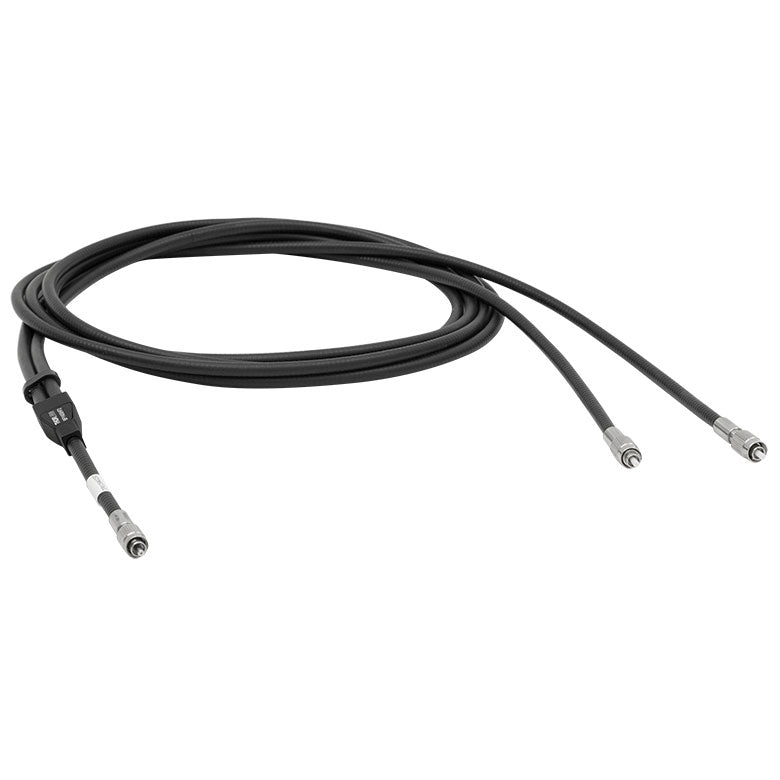

T-BFY400HF2 - Bifurcated Fiber Bundle, Ø400 µm, High OH, FC/PC, 2 m

T-BFY400HF2 - Bifurcated Fiber Bundle, Ø400 µm, High OH, FC/PC, 2 m

Product Drawing

• 250 - 1200 nm or 300 - 1200 nm Wavelength Range (See Table Below)
• SMA905 or FC/PC 2.0 mm Narrow Key Connectors Terminate All Ends
• 2 m Total Length from Common End to Split Ends
• High-Quality FT061PS Ø6.1 mm Stainless Steel Tubing with Black Plastic Sheath
• Wavelength Range 300 - 1200 nm
• Fiber Item # FT400UMT
• # of Fibers 2
• Core Diameter 400 ± 8 µm
• Cladding Diameter 425 ± 10 µm
• Coating Diameter 730 ± 30 µm
• NA  0.39
• Min Bend Radius (Short Term / Long Term) 43 / 86 mm

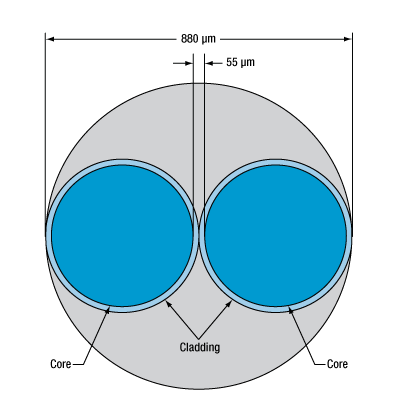

• Common End Face Drawing
• Connector Material FC/PC Mixed
