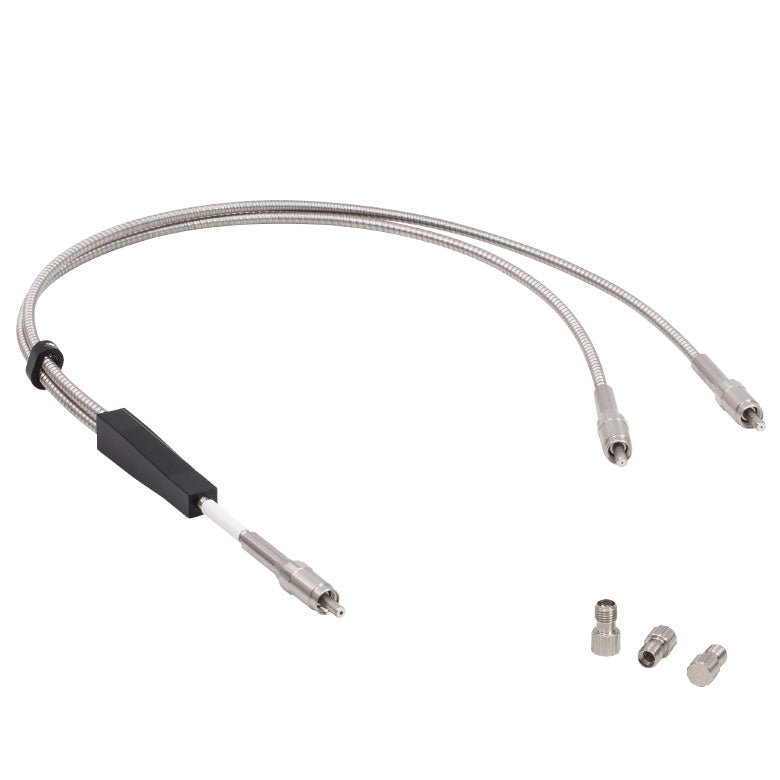

T-BFYZ4S05 - Bifurcated Fiber Bundle, Ø450 µm, ZBLAN, SMA905, 0.5 m
T-BFYZ4S05 - Bifurcated Fiber Bundle, Ø450 µm, ZBLAN, SMA905, 0.5 m
T-BFYZ4S05 - Bifurcated Fiber Bundle, Ø450 µm, ZBLAN, SMA905, 0.5 m
Roll over image to zoom in Click on image to zoom
T-BFYZ4S05 - Bifurcated Fiber Bundle, Ø450 µm, ZBLAN, SMA905, 0.5 mT-BFYZ4S05 - Bifurcated Fiber Bundle, Ø450 µm, ZBLAN, SMA905, 0.5 mT-BFYZ4S05 - Bifurcated Fiber Bundle, Ø450 µm, ZBLAN, SMA905, 0.5 m

T-BFYZ4S05 - Bifurcated Fiber Bundle, Ø450 µm, ZBLAN, SMA905, 0.5 m

Fosco ConnectSKU: T-BFYZ4S05
Price:
$ 1,985.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

T-BFYZ4S05 - Bifurcated Fiber Bundle, Ø450 µm, ZBLAN, SMA905, 0.5 m

Product Drawing

  • Bifurcated Bundles Made from Thorlabs' Ø100 µm Core Multimode ZBLAN Fiber Manufactured In-House
  • Broadband 285 nm - 4.5 µm Wavelength Range
  • SMA905 Connectors Terminate All Ends
  • 0.5 m Total Length from Common End to Split Ends
  • T-BFYZ4S05: High-Quality Ø3.8 mm Stainless Steel Tubing
  • T-BFYZ6S05: High-Quality Ø8.0 mm Stainless Steel Tubing
  • Wavelength Range 285 nm - 4.5 µm
  • Fiber  ZBLAN Multimode
  • # of Fibers 2
  • Core Diameter 450 ± 15 µm
  • Cladding Diameter 540 ± 15 µm
  • Coating Diameter 650 ± 25 µm
  • NA 0.20 ± 0.02 @ 2.0 µm
  • Min Bend Radius (Short Term / Long Term) 50 / 125 mm

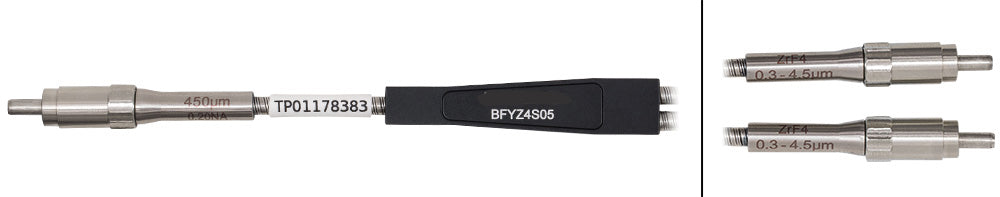

  • Common end Face Drawing
  • Connector Material SMA905 Stainless Steel
