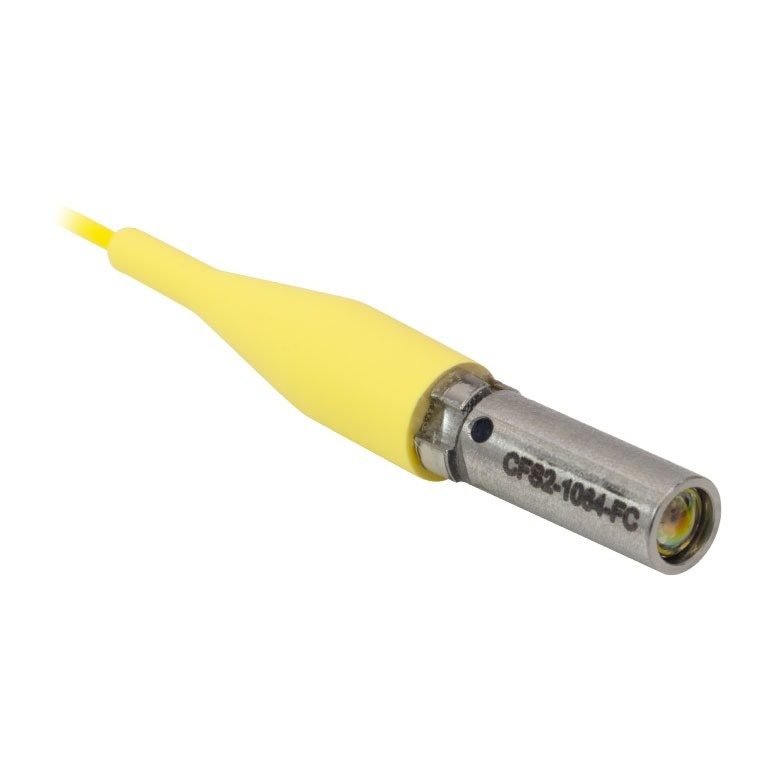

T-CFS2-1064-FC - SM Pigtailed Aspheric Collimator, EFL 2.02 mm, 1064 nm, FC/PC
T-CFS2-1064-FC - SM Pigtailed Aspheric Collimator, EFL 2.02 mm, 1064 nm, FC/PC
T-CFS2-1064-FC - SM Pigtailed Aspheric Collimator, EFL 2.02 mm, 1064 nm, FC/PC
Roll over image to zoom in Click on image to zoom
T-CFS2-1064-FC - SM Pigtailed Aspheric Collimator, EFL 2.02 mm, 1064 nm, FC/PCT-CFS2-1064-FC - SM Pigtailed Aspheric Collimator, EFL 2.02 mm, 1064 nm, FC/PCT-CFS2-1064-FC - SM Pigtailed Aspheric Collimator, EFL 2.02 mm, 1064 nm, FC/PC

T-CFS2-1064-FC - SM Pigtailed Aspheric Collimator, EFL 2.02 mm, 1064 nm, FC/PC

Fosco ConnectSKU: T-CFS2-1064-FC
Price:
$ 410.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

T-CFS2-1064-FC - SM Pigtailed Aspheric Collimator, EFL 2.02 mm, 1064 nm, FC/PC

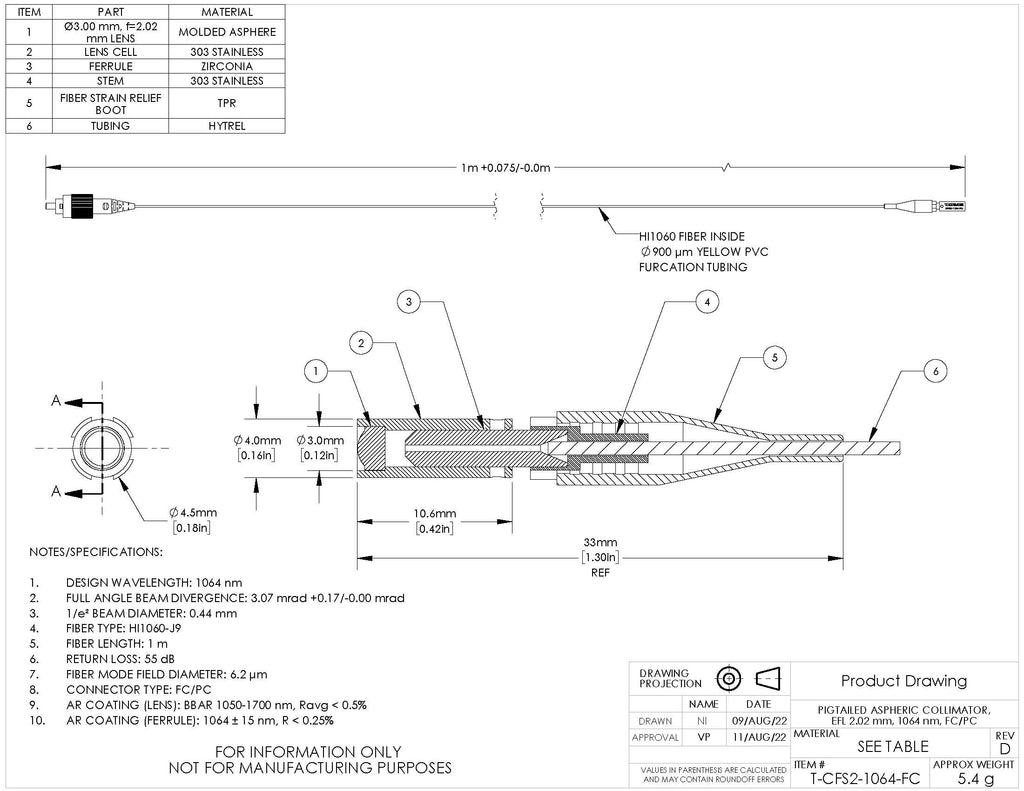

Product Drawing

  • Compact Fiber Collimation Packages
  • SM Fiber Pigtail with FC/PC or FC/APC Connectors Available
  • Non-Magnetic Stainless Steel Housing
  • Alignment Wavelength 1064 nm
  • Lens AR Coating 1050 - 1700 nm Ravg < 0.5%
  • Waist Diameter 0.44 mm
  • Waist Distance 1.99 mm

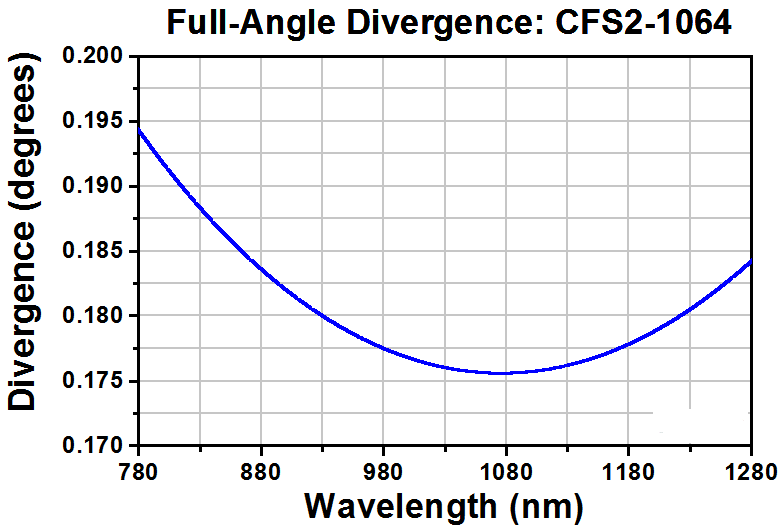

  • Full-Angle Divergence 0.18° +0.01°/-0.00° (3.07 +0.17/-0.00 mrad)
  • Theoretical Divergence
  • NA Lens 0.50
  • Focal Length at Alignment Wavelength 2.02 mm
  • Clear Aperture 2.0 mm
  • Housing Outer Diameter 4.0 mm
  • Connector Type 2.0 mm Narrow Key FC/PC
