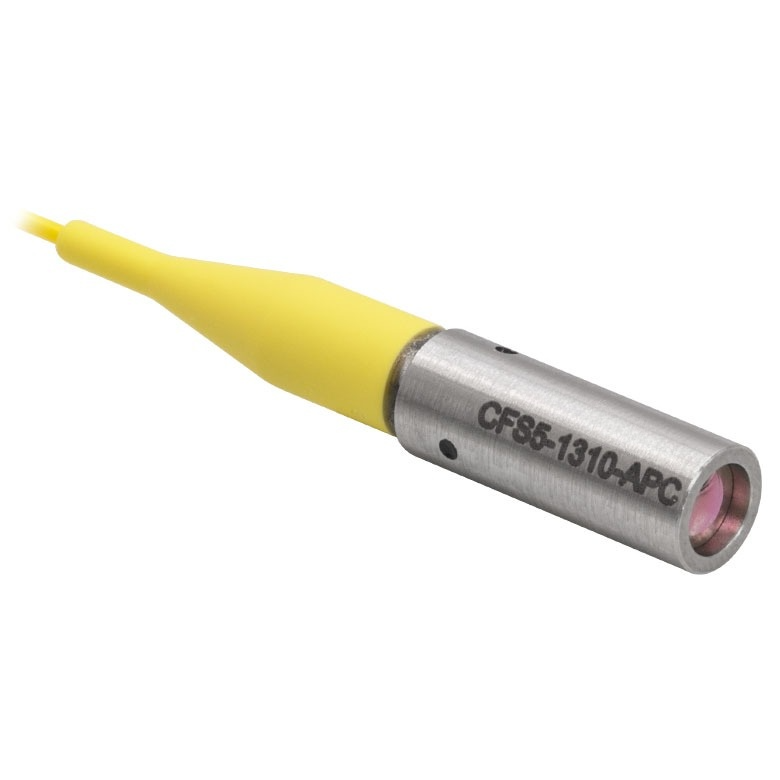

T-CFS5-1310-APC - SM Pigtailed Aspheric Collimator, EFL 4.70 mm, 1310 nm, FC/APC
T-CFS5-1310-APC - SM Pigtailed Aspheric Collimator, EFL 4.70 mm, 1310 nm, FC/APC
T-CFS5-1310-APC - SM Pigtailed Aspheric Collimator, EFL 4.70 mm, 1310 nm, FC/APC
Roll over image to zoom in Click on image to zoom
T-CFS5-1310-APC - SM Pigtailed Aspheric Collimator, EFL 4.70 mm, 1310 nm, FC/APCT-CFS5-1310-APC - SM Pigtailed Aspheric Collimator, EFL 4.70 mm, 1310 nm, FC/APCT-CFS5-1310-APC - SM Pigtailed Aspheric Collimator, EFL 4.70 mm, 1310 nm, FC/APC

T-CFS5-1310-APC - SM Pigtailed Aspheric Collimator, EFL 4.70 mm, 1310 nm, FC/APC

Fosco ConnectSKU: T-CFS5-1310-APC
Price:
$ 385.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

T-CFS5-1310-APC - SM Pigtailed Aspheric Collimator, EFL 4.70 mm, 1310 nm, FC/APC

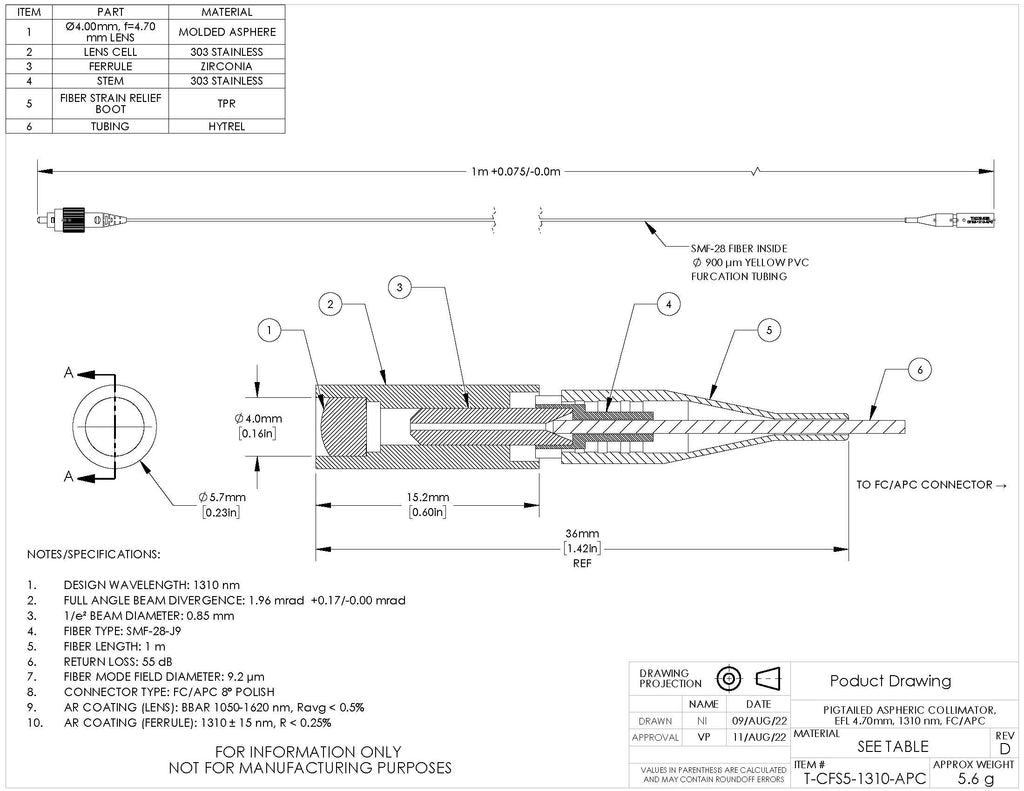

Product Drawing

  • Compact Fiber Collimation Packages
  • SM Fiber Pigtail with FC/PC or FC/APC Connectors Available
  • Non-Magnetic Stainless Steel Housing
  • Alignment Wavelength 1310 nm
  • Lens AR Coating 1050 - 1620 nm Ravg < 0.5%
  • Waist Diameter 0.85 mm
  • Waist Distance 4.21 mm

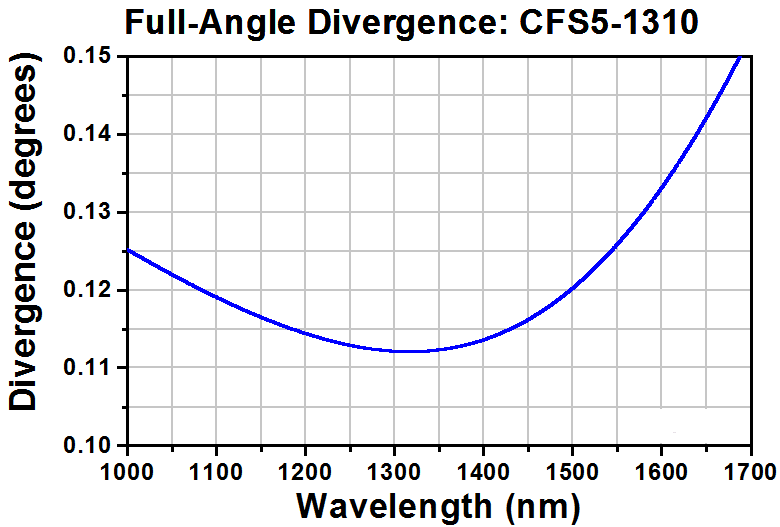

  • Full-Angle Divergence 0.11° +0.01°/-0.00° (1.96 +0.17/-0.00 mrad)
  • Theoretical Divergence
  • NA Lens 4.70 mm
  • Clear Aperture 3.6 mm
  • Housing Outer Diameter 5.7 mm
  • Connector Type 2.0 mm Narrow Key FC/APC
Fiber Type Fiber Length Insertion Loss Return Loss Mode Field Diameter
SMF-28-J9 1 m <0.2 dB 55 dB 9.2 µm @ 1310 nm
