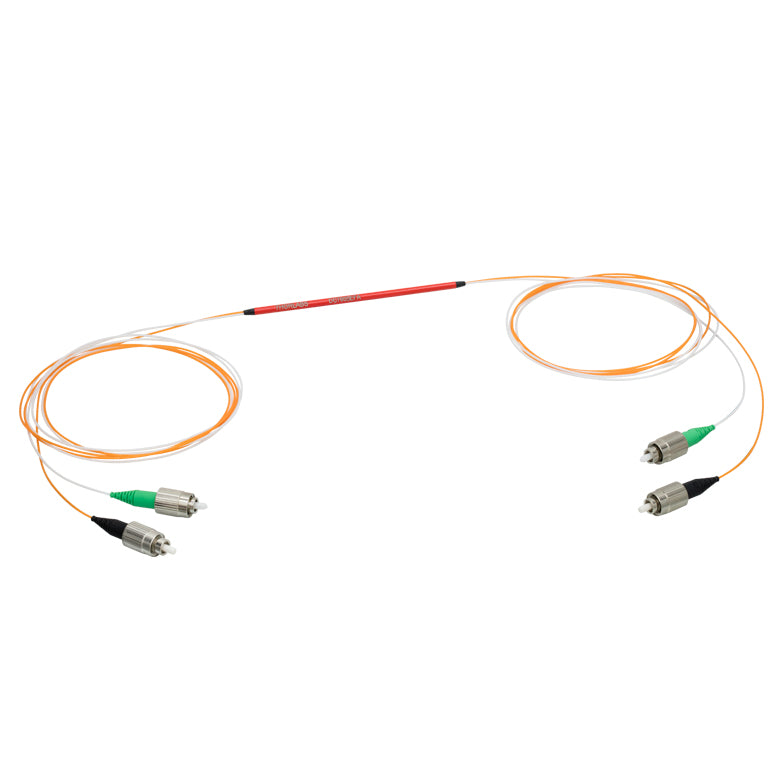

T-DC780SEFA - 2x2 Double-Clad Fiber Coupler, 780 nm, Connectors

T-DC780SEFA - 2x2 Double-Clad Fiber Coupler, 780 nm, Connectors

Product Drawing

• Four Wavelength Ranges
  • 430 - 680 nm
  • 680 - 980 nm
  • 960 - 1260 nm
• ≤0.5 dB Single Mode Core Insertion Loss
• At Least 60% Multimode Inner Cladding Transfer
• All Models Available With Connectors (780 nm and 1060 nm Available Without Connectors)
• 0.5 m or 1.0 m +0.075 / -0.0 m Long Fiber Leads
• Individualized Data Sheet Included with Each Coupler
• Wavelength Range 680 - 980 nm
• Core Insertion Loss (Click for Plot) ≤0.5 dB
• Multimode Inner Cladding Transfer ≥70%
• DCF Core NA 0.12
• DCF Inner Cladding Diameter 26 µm
• DCF Inne Cladding NA 0.19
• MM Fiber Core NA
• Termination (Ports A and S: FC/APC) Ports B and R: FC/PC
