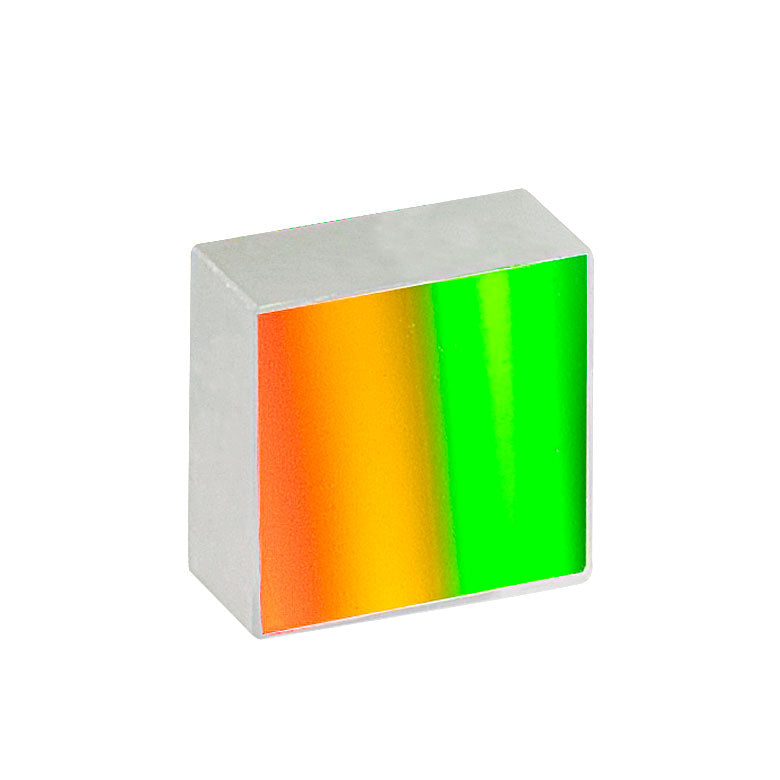

Name: T-GR25-0310 - Ruled Reflective Diffraction Grating, 300/mm, 1 µm Blaze, 25 x 25 x 6 mm
Brand: Fosco Connect
SKU: T-GR25-0310
Price: 245.00 USD
Availability: InStock

$T-GR25-0310 - Ruled Reflective Diffraction Grating, 300/mm, 1 µm Blaze, 25 x 25 x 6 mm$

Roll over image to zoom in Click on image to zoom

$T-GR25-0310 - Ruled Reflective Diffraction Grating, 300/mm, 1 µm Blaze, 25 x 25 x 6 mm$ $T-GR25-0310 - Ruled Reflective Diffraction Grating, 300/mm, 1 µm Blaze, 25 x 25 x 6 mm$ $T-GR25-0310 - Ruled Reflective Diffraction Grating, 300/mm, 1 µm Blaze, 25 x 25 x 6 mm$ $T-GR25-0310 - Ruled Reflective Diffraction Grating, 300/mm, 1 µm Blaze, 25 x 25 x 6 mm$

T-GR25-0310 - Ruled Reflective Diffraction Grating, 300/mm, 1 µm Blaze, 25 x 25 x 6 mm

Product Drawing

Blaze Wavelengths from 750 to 1600 nm

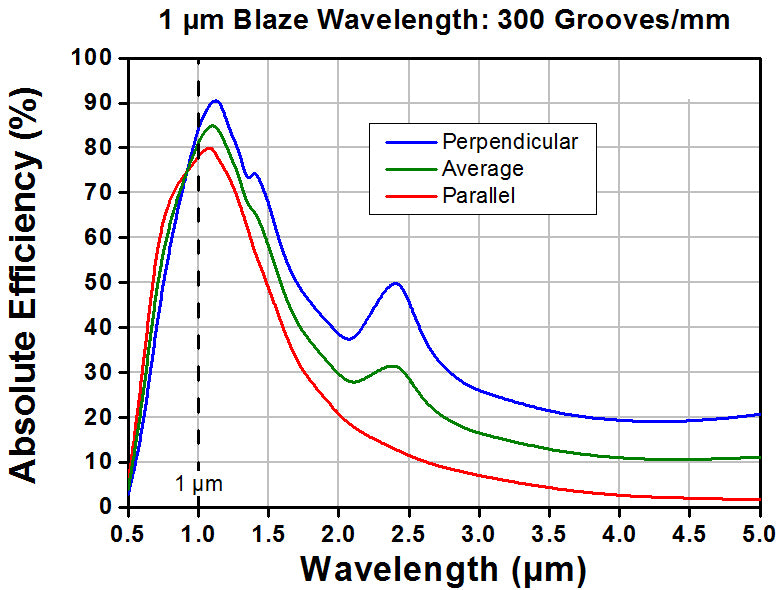

High Grating Efficiency of 60 to 80% at Blaze Wavelength
Low Ghosting, <0.5% of Parent Line
Aluminum Reflective Coating
Soda Lime Glass Substrate with 300 to 1200 Grooves/mm
Produced from Ruled Original
Dimensions (W x H x D) 25 mm x 25 mm x 6 mm
Blaze Wavelength 1 µm
Grooves/mm 300

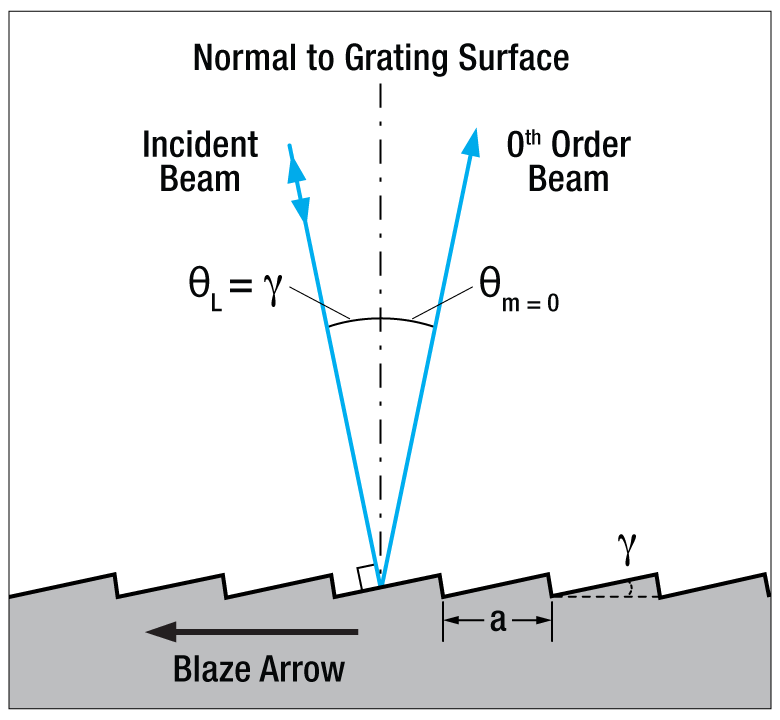

Blaze Angle 8° 36'
Dispersion 3.30 nm/mrad
