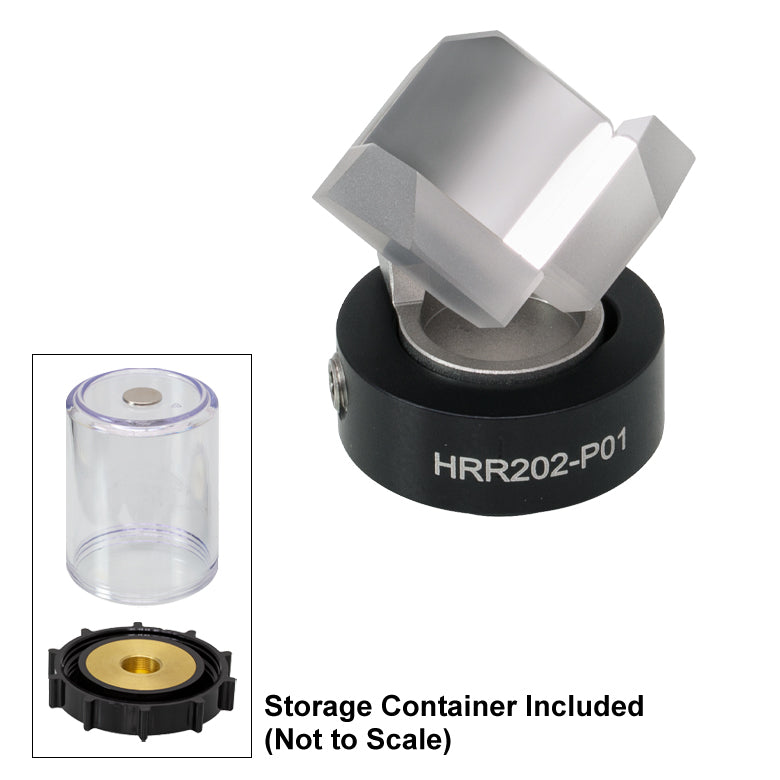

T-HRR202-P01 - N-BK7 Hollow Retroreflector, Ø0.6" Clear Aperture, Protected Silver Coating, SM05-Threaded Mount
T-HRR202-P01 - N-BK7 Hollow Retroreflector, Ø0.6" Clear Aperture, Protected Silver Coating, SM05-Threaded Mount
Roll over image to zoom in Click on image to zoom
T-HRR202-P01 - N-BK7 Hollow Retroreflector, Ø0.6" Clear Aperture, Protected Silver Coating, SM05-Threaded MountT-HRR202-P01 - N-BK7 Hollow Retroreflector, Ø0.6" Clear Aperture, Protected Silver Coating, SM05-Threaded Mount

T-HRR202-P01 - N-BK7 Hollow Retroreflector, Ø0.6" Clear Aperture, Protected Silver Coating, SM05-Threaded Mount

Fosco ConnectSKU: T-HRR202-P01
Price:
$ 850.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

T-HRR202-P01 - N-BK7 Hollow Retroreflector, Ø0.6" Clear Aperture, Protected Silver Coating, SM05-Threaded Mount

Product Drawing

  • Protected Silver Coating
  • N-BK7 or UV Fused Silica Substrates
  • SM05- or SM1-Threaded Mounts
  • Clear Aperture Entrance: Ø0.60" (15.2 mm) Single Leg: Ø0.28" (7.1 mm)
  • Coating Protected Silver
  • Reflectance per Surface (Average) >97.5% (450 nm - 2 µm) >96% (2 - 20 µm)
  • Substrate
  • Substrate Thickness 4 mm
  • Surface Flatness λ/4 at 633 nm
  • Dimensions 0.99" x Ø0.93" (25.1 mm x Ø23.7 mm)
  • Mount Threading SM05 (0.535"-40)
