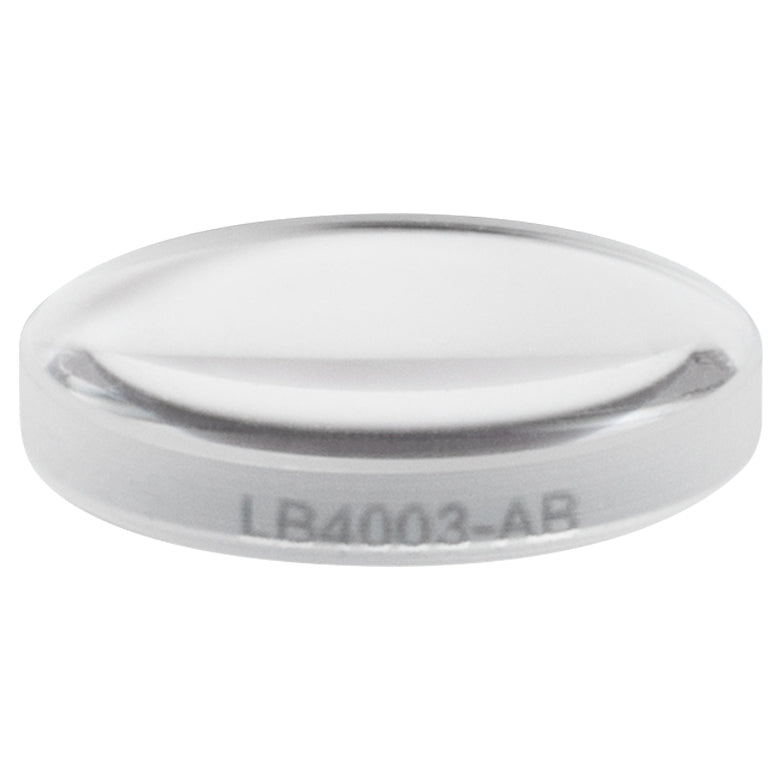

T-LB4003-AB - f = 30 mm, Ø1/2" UV Fused Silica Bi-Convex Lens, AR Coating: 400 - 1100 nm
Roll over image to zoom in Click on image to zoom
T-LB4003-AB - f = 30 mm, Ø1/2" UV Fused Silica Bi-Convex Lens, AR Coating: 400 - 1100 nm

T-LB4003-AB - f = 30 mm, Ø1/2" UV Fused Silica Bi-Convex Lens, AR Coating: 400 - 1100 nm

Fosco ConnectSKU: T-LB4003-AB
Price:
$ 195.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

T-LB4003-AB - f = 30 mm, Ø1/2" UV Fused Silica Bi-Convex Lens, AR Coating: 400 - 1100 nm

Product Drawing

Features

  • 5 Different Diameters Available: Ø5 mm, Ø6 mm, Ø1/2", Ø1", and Ø2"
  • AR-Coating for the 400 - 1100 nm Range
  • Fabricated from UV Grade Fused Silica
  • Focal Lengths Available from 10.0 - 1003.5 mm
  • Diameter 1/2"
  • Focal Length 30.1 mm
  • Diopter +33.2
  • Radius of Curvature 27.1 mm
  • Center Thickness 3.3 mm
  • Edge Thickness 1.8 mm
  • Back Focal Length 28.9 mm
  • Reference Drawing
