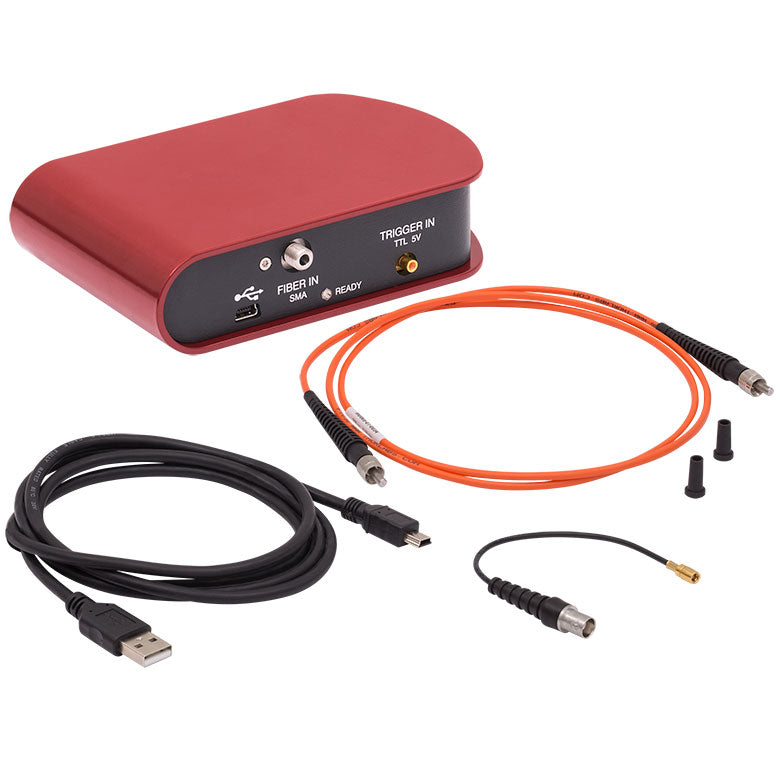

TH-CCS200-M - Compact Spectrometer, Extended Range: 200 - 1000 nm, Metric

This has been replaced by the TH-CCT10 model.

TH-CCS200/M - Compact Spectrometer, Extended Range: 200 - 1000 nm, Metric

• Models for the Visible, NIR, or UV to NIR Spectral Ranges
• Rugged Czerny-Turner Spectrometer Design with No Moving Parts
• Auto Compensation for Dark Current Noise
• Amplitude Corrected and Shipped with Calibration Report
• High-Speed USB Connection Allows up to 200 Scans per Second
• Trigger Input for External Synchronization (TTL)
• 16-Bit A/D-Converter
• 3648 Pixel CCD Line Array
• Includes Multimode Fiber Patch Cable
• Cosine Correctors Available Separately Allow Free-Space Input
• Round-to-Linear Fiber Bundles Optimized for Spectrometer Use Available Separately Below
• Czerny-Turner Spectrometer Design with No Moving Parts
• Choose from Three Wavelength Ranges:
  • 350 - 700 nm^a
  • 500 - 1000 nm
  • 200 - 1000 nm^a,b
• Accuracies from 0.6 to 2 nm Available
• Product Drawing
