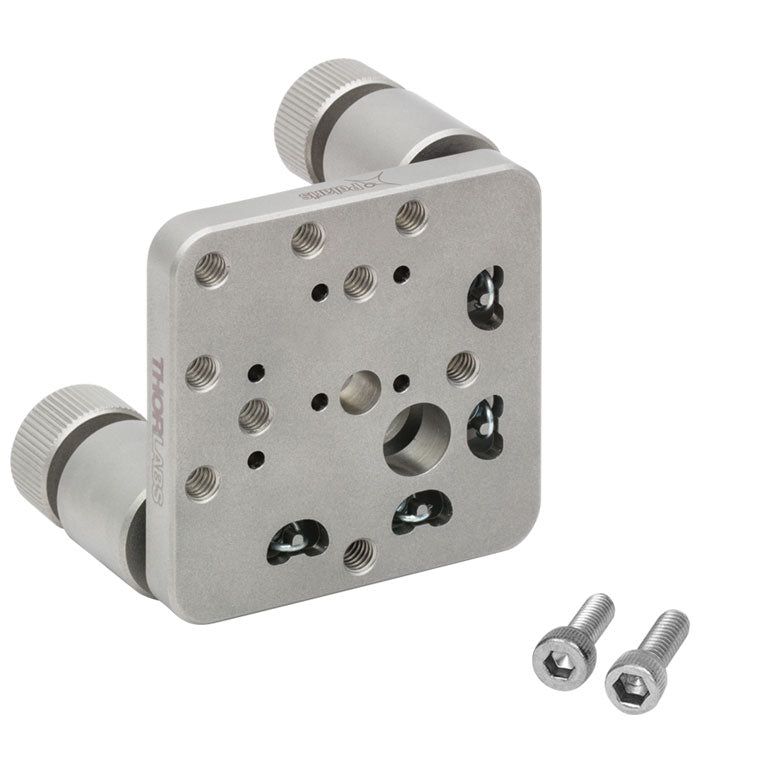

THPOLARIS-K1M4 - Polaris Kinematic Platform Mount, 2 Adjusters, 8-32 Mounting Holes
- 2-Adjuster, Hex-Driven Design
- 100 TPI Matched Actuator/Body Pairs
- ±4° Mechanical Angular Range
- ~7.7 mrad/rev Resolution
- <2 µrad Deviation after Temperature Cycling (See the Test Data Tab for Details)
The Polaris Kinematic Platform Mount provides a flat mounting surface with high-resolution angular adjustment. The mounting surface features an array of nine 8-32 (M4) tapped holes and one #8 (M4) clearance hole for mounting threaded components. The clearance hole and two of the tapped holes each include two alignment pin holes, which allow the user to precisely align components mounted on these holes using dowel pins. Standard Ø2 mm DIN 7-m6 ground dowel pins are recommended.
