Snap Pack (6) Duplex Adapters, LC/UPC, 12 Fiber Pigtail, Singlemode, 3 Meters, Off White Plate

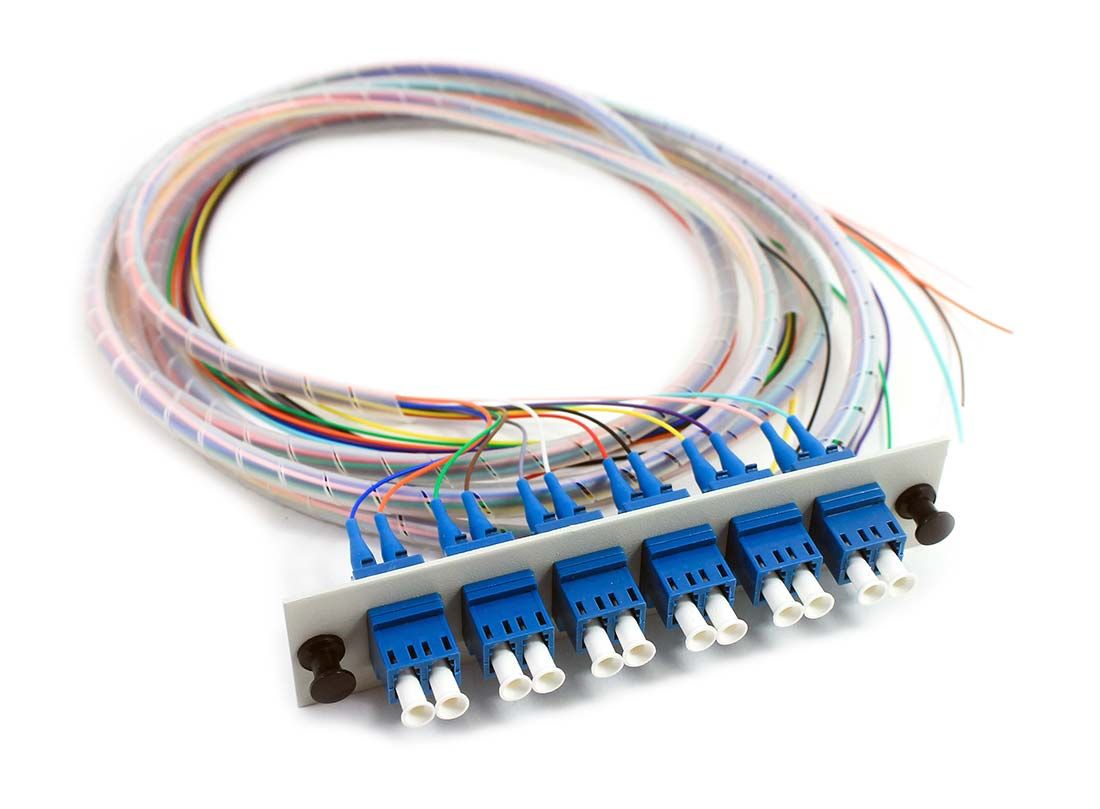

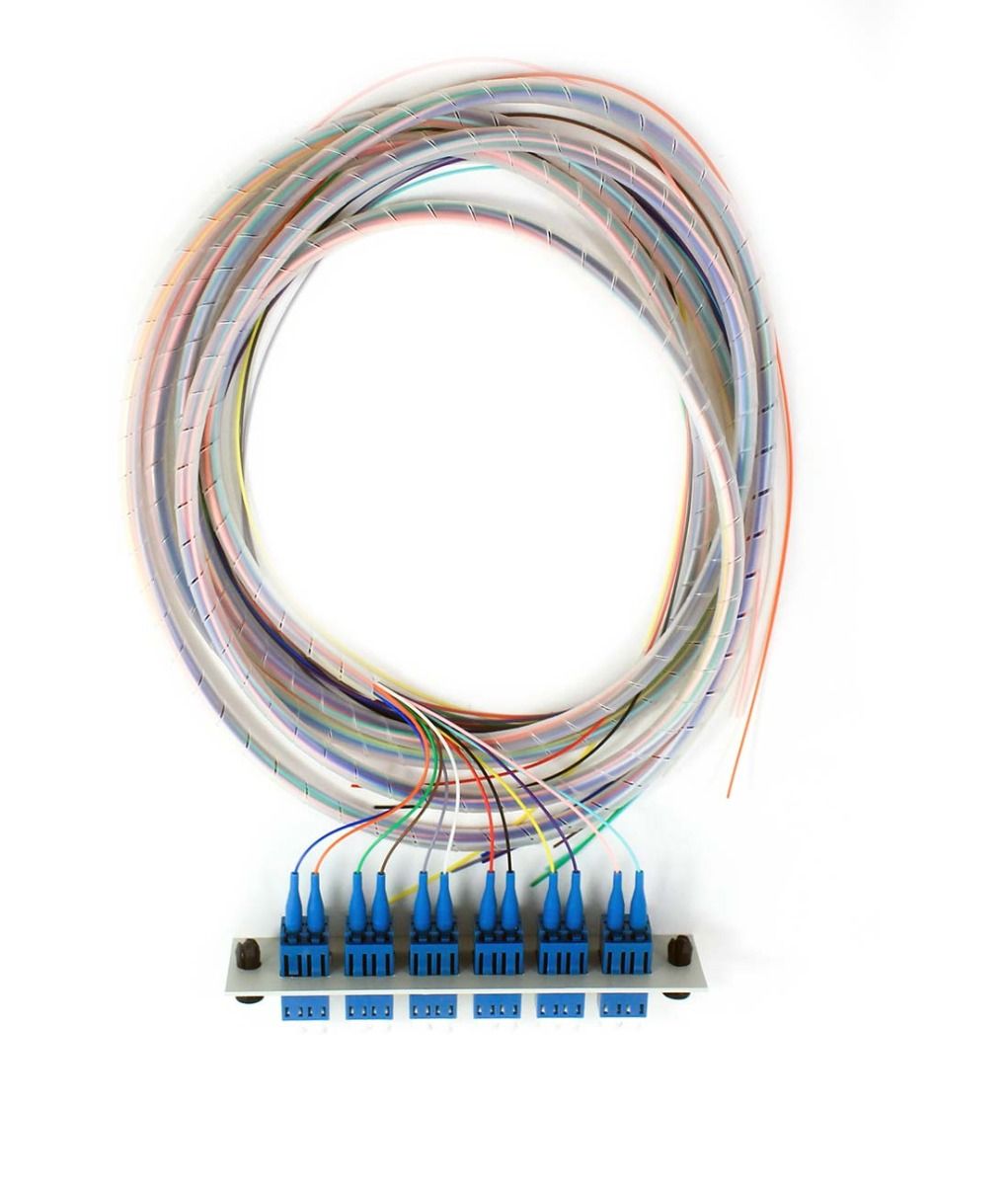

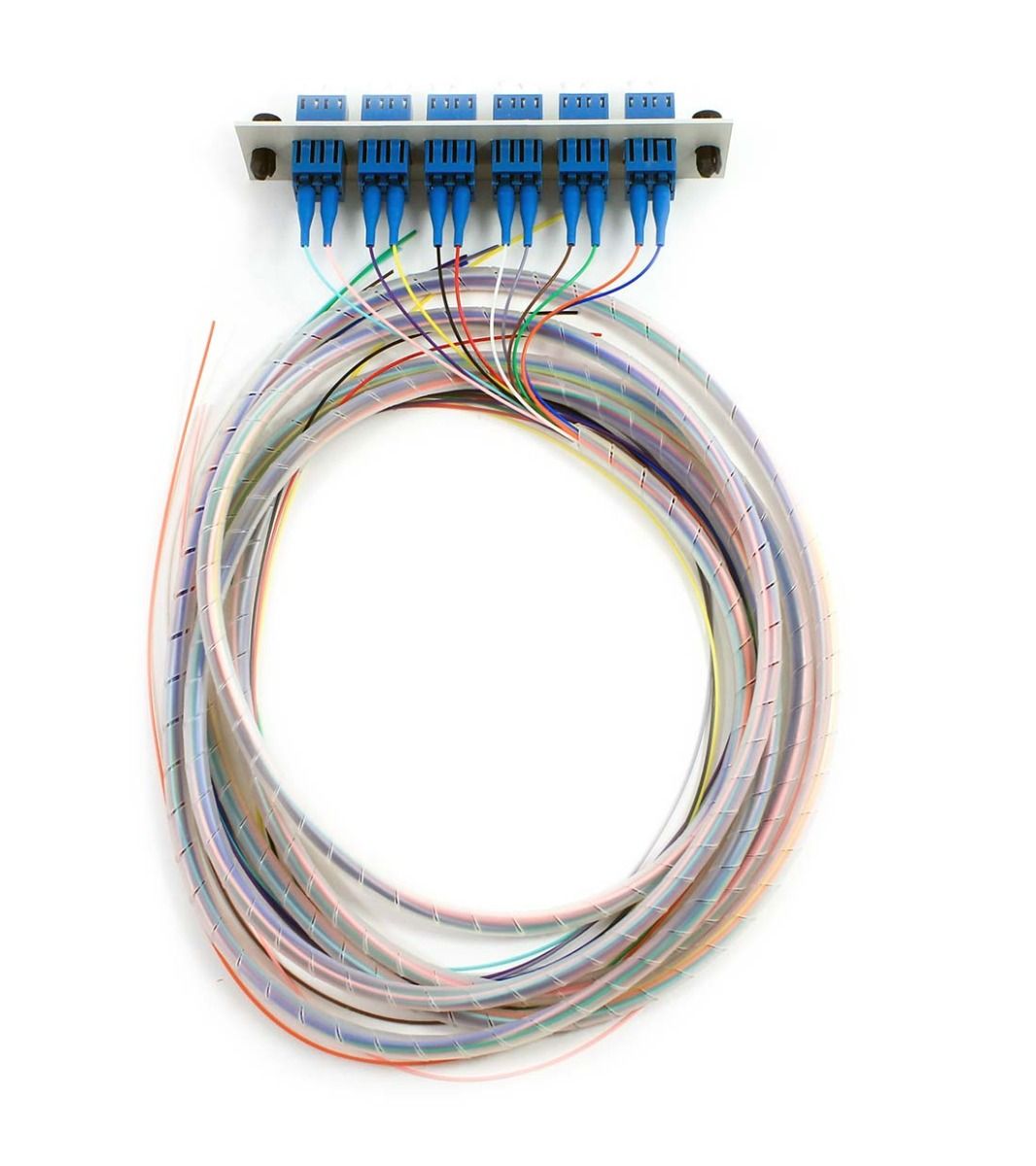

The Snap Pack (F1-LC6DL-SPN) is a pre-terminated LGX-compatible adapter plate designed to streamline fiber distribution frame installations. This professional-grade solution features a cold-rolled steel faceplate loaded with six LC/UPC duplex adapters and a 3-meter, 12-fiber pigtail bundle made with high-performance Corning SMF-28 Ultra fiber.
Key Features
-
High-Performance Optics: All pigtails feature low insertion loss (0.3dB max) and high back reflection (-65dB) for superior signal integrity.
-
Premium Materials: Built with a 16 GA cold-rolled steel faceplate finished in a durable black powder coat.
-
Simplified Management: 900µm tight-buffer pigtails are color-coded to TIA-598-A industry standards for rapid, error-free splicing.
-
LGX Compatibility: Standard 5.10" W x 1.13" H dimensions with 4.64" on-center mounting pins for universal fit in industry-standard enclosures.
-
Reliable Construction: Designed to operate in standard environments ranging from -20°C to +70°C.
Technical Specifications
| Attribute | Specification |
| Fiber Count | 12 Fibers |
| Fiber Type | Corning SMF-28 Ultra (Singlemode) |
| Adapter/Polish Type | LC / UPC Duplex |
| Pigtail Length | 3 Meters (Tolerance: +3/-0 inch) |
| Buffer Material | 900µm Tight Buffer (PVC) |
| Insertion Loss | 0.3dB (max) |
| Back Reflection | -55dB |
| Operating Temp | -20°C to +70°C |
| Plate Material | 16 GA Cold Rolled Steel |
| Plate Dimensions | 5.10" W x 1.13" H |
