Buffer Tube Fan-Out Kit - 12 Fibers, 36" Tubing
Indoor Buffer Tube Fan-Out Kit (12-Fiber, 36")
The indoor buffer tube fan-out kit is a professional-grade solution for the field-termination of 12-fiber buffer tubes. Engineered for users installing connectors directly onto 250 µm coated fibers, this kit provides a compact, snap-together assembly that requires no additional hardware or epoxy.
Each kit features color-coded 900 µm furcation tubes that match standard fiber color schemes, ensuring seamless fiber management within high-density hardware.
Key Features
- Tool-Less Assembly: Snap-together furcation design eliminates the need for epoxy and simplifies indoor installation.
- Standardized Coding: 12-color sequence (Blue through Aqua) ensures easy fiber identification and routing.
- High Density: Designed for 250 µm coated fibers to provide the most compact fan-out solution for tight-buffered cable management.
- Versatile Application: Ideal for field-installing connectors in enterprise networks and data centers.
Technical Specifications
| Feature | Specification |
| Environment | Indoor Only |
| Fiber Count | 12 Fibers |
| Output Tubing Diameter | 0.9 mm (900 µm) |
| Tubing Length | 914.4 mm (36 in) |
| Furcation Body Length | 44.5 mm (1.75 in) |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Tubing Colors | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Compliance | RoHS 2011/65/EU |
Spec Sheet

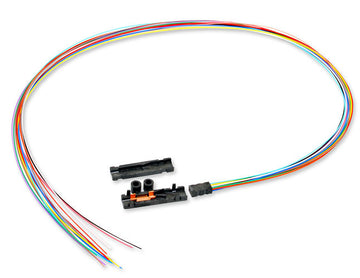

Package Contents
- Fan-out top and bottom housing
- Insert with 36-inch fan-out tubing
