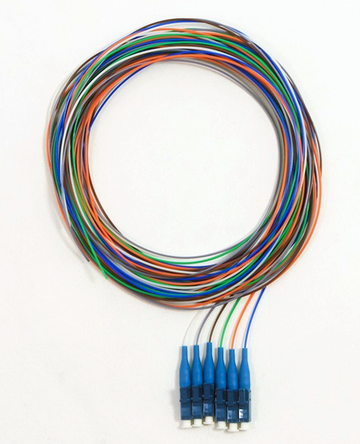

LC/UPC 900µm single mode color coded pigtails (6 pack), 3 meters length.

Now available are easy to use 6 & 12 packs of color-coded fibers with your choice of connector.

6 Pack includes fiber colors of Blue/Orange/Green/Brown/Slate/White and are length of 3 meters.

Single mode UPC - typical insertion loss 0.3dB, back reflection < -55dB

• 6 Fibers, Singlemode

• LC/UPC Connectors, Blue Boots

• Corning® 900um Tight Buffered Optical Fiber

• 3 Meter Length

• Typical Insertion Loss: 0.4dB Max

900µm Pigtails Packs are designed for high fiber count splicing applications and are color coded to TIA-598-A industry standards for ease of use. Pigtails are available in Singlemode or Multimode, 6 or 12 fiber packs, and your choice of stock connectors (SC, LC, ST, FC).

All pigtails feature low insertion loss, low back reflection and are made with Corning® fiber. Standard length of 3 meters.

6 Fiber Buffer Colors - Blue, Orange, Green, Brown, Slate, White
12 Fiber Buffer Colors - Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua

Singlemode UPC Pigtails
Pigtail Lengths 3 meters
Lengths Tolerance +3/-0 inch
Fiber Type: Corning® SMF28 Ultra
Buffer Style: 900µm Tight Buffer
Buffer Material: PVC
Insertion Loss: 0.3dB (max)
Back Reflection: -55dB
Operating Temperature: -20 to +70 degrees Celsius
Storage Temperature: -40 to +70 degrees Celsius
