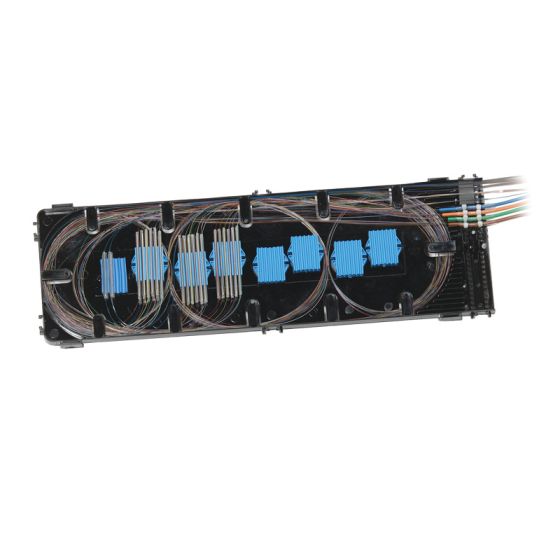

AFL LightGuard LL-4896 Universal Splice Tray (96F/288F Mass Fusion)

The AFL LL-4896 Universal Splice Tray is designed for high-density fiber splicing in LightGuard® dome closures, providing an organized, reliable platform for both single-fiber and mass fusion applications. Built to support modern high-count networks, this tray allows technicians to efficiently manage large volumes of splices while maintaining proper fiber routing, protection, and long-term reliability.

When used inside the LightGuard LG-350 sealed dome closure, the LL-4896 enables scalable splicing capacity for aerial or underground deployments. It supports express, ring, and long-haul network architectures, making it well suited for backbone, metro, and distribution network builds where space efficiency and splice integrity are critical.

Specifications

• Compatible Closure: AFL LightGuard® LG-350

• Single Fusion Capacity:

  • Up to 96 single-fiber fusion splices per tray

• Mass Fusion Capacity:

  • Up to 24 mass fusion splices

  • Supports 288 fibers total (12-fiber ribbons)

• Maximum Trays per LG-350:

  • 5 splice trays

• Application Environments:

  • Aerial installations

  • Underground installations

• Network Types:

  • Express networks

  • Ring networks

  • Long-haul fiber networks

This universal splice tray provides a clean, scalable solution for high-fiber-count splicing inside LightGuard closures, helping ensure consistent performance and efficient fiber management across demanding network deployments.
