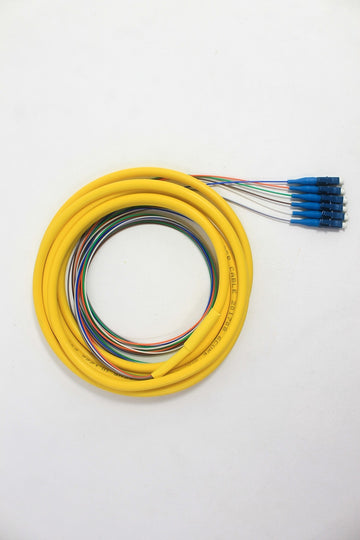

6 Fiber LC/UPC Distribution Style Pigtail,SM, Blue Boots

Mooseline Part No.: DSP6LCUPCBU

  • $ 38.00 or



Fosco Distribution Style Pigtails feature a durable 2 meter distribution style outer jacket to ensure strength and protection during installations. The distribution fiber fans out into 900µm tight buffered fibers that are color coded to TIA-598-A industry standards for ease of use.

The (6) 900um tight-buffered fibers are colored Blue, Orange, Green, Brown, Slate and White. The distribution pigtail is colored yellow (single mode). Standard length of 3 meters: 1 meter 900µm fan out and 2 meter distribution "tail".

Fosco pigtails feature low insertion loss, low back reflection, and color-coded 900um tight buffered fibers. Stock pigtail configurations are available with your choice of LC, SC or ST fiber optic connectors and a variety of endface polishes. Available in 6-packs or 12-packs at standard 3 meter lengths. All Fosco pigtails are manufactured with Corning® fiber and have a typical Insertion Loss of 0.4dB (max).

Contact Fosco for custom "Snap Packs" that are built to order. Including varying pigtail lengths, fiber types, connector types or adapter plate configuration.

  • 6 Fibers, Single Mode
  • LC/UPC Connectors, Blue Boots
  • Distribution and 900um, Corning Fiber
  • 3 Meter Length
  • Typical Insertion Loss: 0.4dB Max
  • Download spec sheet
