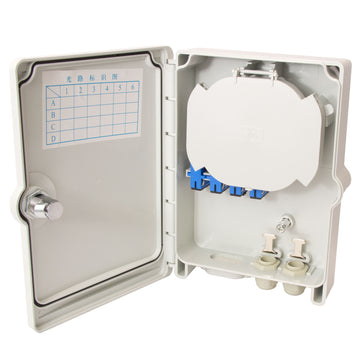

NID Termination Box (For 12 SC or up to 24 LC Connections),2ports+24port for drop cable

Mooseline Part No.: F1-62DW-12SC

  • $ 78.00 or

This product is used in FTTH access system terminal access links, especially for outdoor wall or pole mounting. Include 12 SC adapters.

1. Box is made of ABS material,20 years life time.
2. Two layer structure design, the upper optical wiring distribute layer, the lower fiber splicing layer.
3. IP65 protection class
4. Suitable for LC 4way adapter or SC duplex adapter.
5. Max capacity:24core/LC,12core/SC
6. 2ports+24port for drop cable
Technical parameters (communication cable transfer box meet YD/T988-2007 requirements)
1: Operating temperature: -40° C ~ +60° C
2: Environmental humidity :: = 95% (+40° C)
3: Atmospheric pressure: 70Kpa ~ 106Kpa
4: Cable ports: 2round cable ports +24ports for drop cable
5: Door opening angle: 180°
8: Ground withstand voltage level is not less than 3000V (DC) / 1min no breakdown, no flashover.
9: Insulation resistance: = 2X1000MO/500V
10: Dimensions: 10.16"*7.32"*2.40"
