16-Position Ribbon / Mass Fusion Fiber Optic Splice Tray (192 Fibers)

This 16-position ribbon/mass fusion fiber optic splice tray is designed for high-density ribbon fiber splicing and organized fiber management in splice closures, wall-mount enclosures, and rack-mount panels. The tray supports up to 16 ribbon or mass fusion splice sleeves, accommodating a total of 192 fibers per tray.

Constructed from lightweight aluminum with a black powder-coated finish, the tray provides durability while maintaining a compact profile. Integrated tie-down holes help secure fibers and maintain proper routing, and a snap-on lid protects splices during installation and maintenance. The tray is suitable for applications requiring reliable, high-capacity ribbon fiber splice management.

Download product spec sheet (PDF)

Specifications

• Holds up to 16 ribbon / mass fusion splice sleeves

• Supports 192 fibers per tray

• Designed for ribbon / mass fusion splicing

• Snap-on protective lid

• Integrated fiber tie-down holes

• Base material: Aluminum

• Cover material: Aluminum

• Finish: Black powder coat

• Dimensions: 11.72" L x 3.99" W x 0.41" H

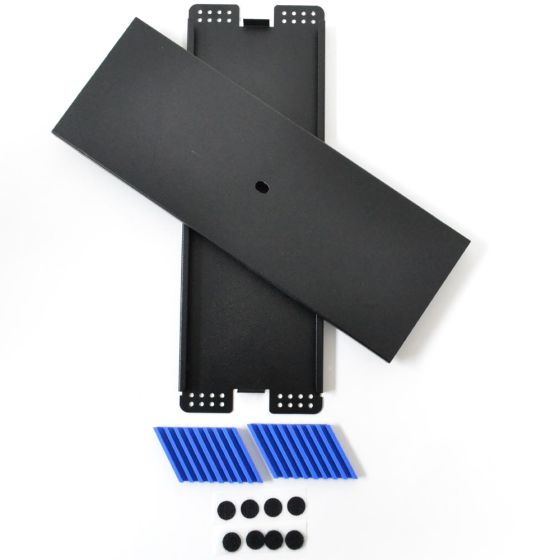

Included Accessories

• (4) 4" zip ties

• (2) 8-position ribbon / mass fusion splice chips with adhesive backing

• (1) tray label

• (4) adhesive Velcro dots
