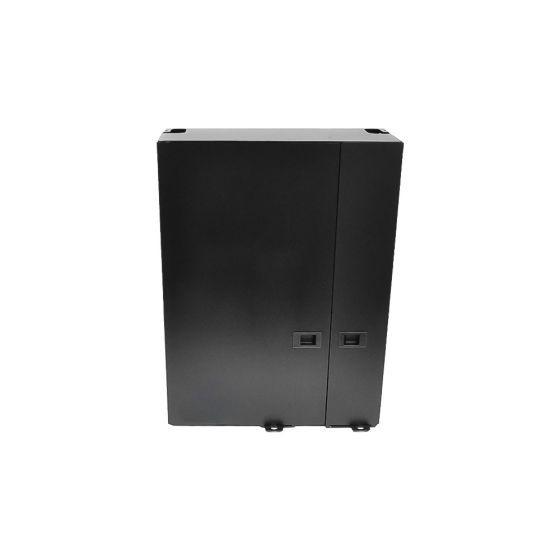

Wall Mount Fiber Patch Panel – Deluxe, 12-Plate Capacity (Black)
SKU: F1DW12X

This deluxe wall-mount fiber enclosure is designed for high-density applications where clean routing, secure access, and reliable splicing/patching performance are essential. Dual hinged, removable doors provide fast technician access, while integrated cable management features keep fibers protected and organized. With support for up to 12 LGX adapter plates and multiple splice tray formats, this enclosure scales easily for enterprise, telecom, and data-center deployments.

Download product spec sheet (PDF)

Features

• Supports splicing and patching

• Holds 12 LGX-style adapter plates (unloaded)

• Capacity for up to 96 single-fiber or 192 LC duplex connections

• Supports 6–8 splice trays depending on tray model

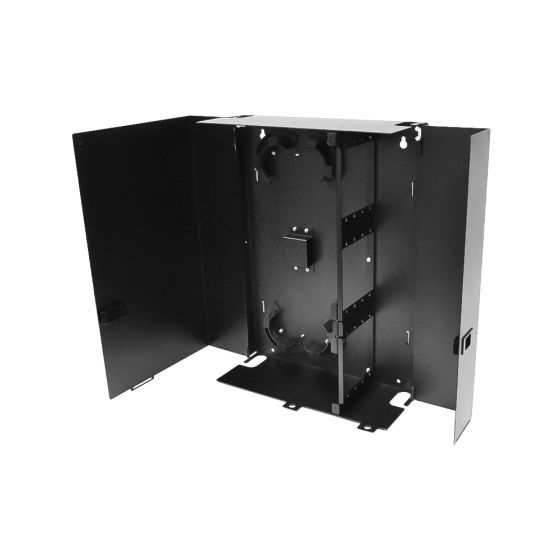

• Dual hinged doors with snap-latch security

• Removable doors for full access during installation

• Integrated cable management rings

• Multiple routing paths with top and bottom cable entry ports

• Padlock eyelets on both doors (padlock optional)

• Rugged 14-gauge aluminum construction

• Black electrostatic powder-coat finish

Technical Specifications

• Dimensions: 14.51" W × 19.38" H × 5.60" D

• Material: .060" aluminum

• Adapter Plate Capacity: 12 LGX plates

• Fiber Capacity: 96 single fiber or 192 LC duplex

• Splice Tray Support:

  • 12-position metal splice tray, 6.5" × 4.7"

  • 24-position metal splice tray, 8.5" × 5.0"

  • 12-position plastic splice tray, 7.1" × 4.25"

• Cable Entry: Top and bottom ports

• Doors: Dual-hinged, removable, snap-latch security

Recommended Splice Trays

• F1-SPL12

• F1-SPL24-8.5

• F1-6808
