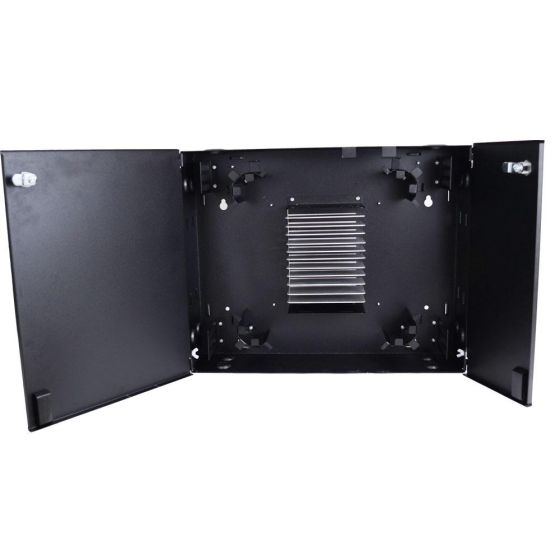

Wall-Mount Splice Enclosure — High-Capacity, Splicing Only (Up to 288 Fusion Splices)

This wall-mount splice enclosure provides a secure, organized splice bay for high-capacity fiber splicing applications where patching is not required. Designed exclusively for splicing, it is well suited for telecom rooms, outside plant transition points, building entrances, and backbone fiber consolidation locations.

The enclosure supports up to twelve splice trays, enabling as many as 288 single fusion splices when using standard 24-fiber trays. Cable entry points on the top, bottom, and sides are protected by dust-proof grommets to safeguard fibers during installation and long-term operation. Inside, movable slack holders and multiple cable tie-down points allow clean routing, strain relief, and proper bend-radius control.

Both doors are removable to provide full access during installation and maintenance, and they are lockable for added security in shared or exposed environments. Constructed from durable 16-gauge cold-rolled steel with a black powder-coated finish, the enclosure offers strength and protection while remaining manageable for wall-mounted installations. Splice trays are not included, allowing flexibility to select trays that best match the application.

Download product spec sheet (PDF)

Technical Specifications

• Mounting Type: Wall-mount splice enclosure

• Application: Splicing only (no patching)

• Splice Capacity:

  • Holds up to (12) splice trays

  • Supports up to 288 single fusion splices (with 24-fiber trays)

• Cable Entry:

  • Top, bottom, and side entry holes

  • Dust-proof grommets (1.25 in)

• Cable Management:

  • Movable slack holders

  • Multiple internal cable tie-down points

• Doors:

  • Dual removable doors

  • Lockable for added security

• Construction:

  • 16-gauge cold-rolled steel

• Finish / Color:

  • Black powder-coated finish

• Dimensions (H × W × D):

  • 17.25 in × 21.25 in × 4.68 in

• Weight (Unloaded):

  • 23 lb

• Recommended Splice Tray Size:

  • Approximately 12 in × 4 in

• Included Components:

  • Enclosure only (splice trays not included)
