UniCam Connector, LC, 50 µm multimode (OM3/OM4 compatible)
Standards
| Approval and Listings | Passed EIA/TIA 568-B.3 |
|---|---|
| Intermateability | Connectors are FOCIS compliant with TIA/EIA 604-10A and IEC61754-20 |
General Specifications
| Technology | No-Epoxy/No-Polish |
|---|---|
| Keyed | No |
| Product Type | Field-Installable Connectors |
| Corning Logo | Yes |
| Packaging | Single Pack |
| Fiber Category | 50 µm MM (OM3/OM4 compatible) |
Temperature Range
| Operation | -40°C to 75°C exceeding EIA/TIA 568-B.3 (-40°F to 167°F exceeding EIA/TIA 568-B.3) |
|---|
Design - Connector
| Connector Type | LC |
|---|---|
| Ferrule | Ceramic |
| Housing Material | Composite |
| Housing Color | Black |
| Boot Color | Aqua |
Mechanical Specifications - Connector
| Durability | ? 0.2 dB change by 500 rematings, FOTP-21 |
|---|---|
| Temperature Cycling | ? 0.3 dB IL, -4° to +7°C, 21 cycles |
| Nominal Fiber Outer Diameter | 125 µm |
| Tensile Strength Jacketed Cable | 50 N, change ? 0.2 dB, FOTP-6 (11 lb, change ? 0.2 dB, FOTP-6) |
| Tensile Strength 900æ Cable | 4.9 N, change ? 0.2 dB, FOTP-6 (1.1 lb, change ? 0.2 dB, FOTP-6) |
Optical Specifications - Connector
| Insertion Loss, Typical | 0.1 dB |
|---|---|
| Insertion Loss, Max. | 0.50 dB |
| Reflectance | ? -26 dB |
Chemical Characteristics
| RoHS | Free of hazardous substances according to RoHS 2002/95/EG |
|---|
Shipping Information
| Units per Delivery | 1/1 |
|---|---|

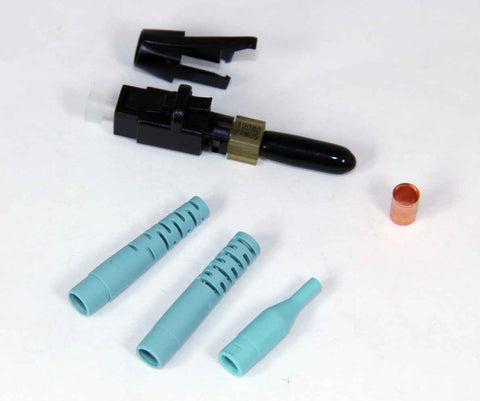

| Package Contents | Connector, trigger, crimp band, boot (900 µm), boot (3.0 mm), boot (2.0 mm) |
