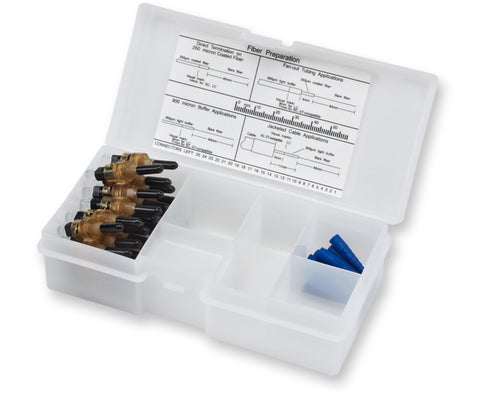

UniCam High-Performance Connector, ST, Single-mode (OS2), ceramic ferrule, organizer pack
Standards
| Approval and Listings | Compliant with EIA/TIA 568-B.3 |
|---|---|
| Intermateability | Connectors are FOCIS compliant with TIA/EIA 604-3 and IEC61754-4 |
General Specifications
| Technology | No-Epoxy/No-Polish |
|---|---|
| Keyed | No |
| Product Type | Field-Installable Connectors |
| Corning Logo | Yes |
| Packaging | Organizer Pack |
| Fiber Category | Single-mode (OS2) |
Temperature Range
| Operation | 0°C to 60°C , meets TIA/EIA 568-B.3 (32°F to 140°F , meets TIA/EIA 568-B.3) |
|---|
Design - Connector
| Connector Type | ST? Compatible |
|---|---|
| Ferrule | Ceramic |
| Housing Material | Composite |
| Housing Color | Amber |
| Boot Color | Blue |
Mechanical Specifications - Connector
| Durability | ? 0.2 dB change by 500 rematings, FOTP-21 |
|---|---|
| Nominal Fiber Outer Diameter | 125 æm |
| Tensile Strength Jacketed Cable | 44 N, change ? 0.2 dB, FOTP-6 (11 lb, change ? 0.2 dB, FOTP-6) |
| Tensile Strength 900æ Cable | 4.9 N, change ? 0.2 dB, FOTP-6 (1.1 lb, change ? 0.2 dB, FOTP-6) |
Optical Specifications - Connector
| Insertion Loss, Typical | 0.2 dB |
|---|---|
| Insertion Loss, Max. | 0.5 dB |
| Reflectance | ? -55 dB |
| Polish | UPC |
Chemical Characteristics
| RoHS | Free of hazardous substances according to RoHS 2002/95/EG |
|---|
Shipping Information
| Units per Delivery | 25/1 |
|---|---|
| Package Contents | 25 connectors, 25 boots (900 æm) |
