Description

Corning Cable Systems CamSplice(TM) Mechanical Splice is recommended for indoor or outdoor through or branch splicing, transition splicing between listed and non-listed cables, pigtail splicing and is ideal for emergency restoration. Incorporating a un ique fiber alignment mechanism that self-centers the fibers and provides accurate alignment, the CamSplice Mechanical Splice requires minimal training and few accessories to assemble. Average "blind" (non-tuned) splice loss is specified at 0.15 dB with a maximum loss less than 0.3 dB.

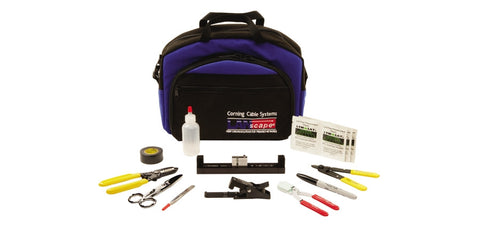

CamSplice Mechanical Splice Tool Kit

Includes CamSplice Mechanical Splice assembly fixture, fiber coating stripping tool, and other miscellaneous items required for splicing, without cleaver; kit comes in a compact carrying case

Dimensions (HxWxD) 24 cm x 33 cm x 10 cm (9.5 in x 13 in x 4 in)

Weight 1.36 kg (3 lb)

• Fiber alignment mechanism
• Self-centers the fiber for accurate alignment end and low loss
• No adhesive or epoxy required
• Reduces splice time with no curing needed
• Universal
• One part fits all fiber coatings
• Designed for difficult installation scenarios
• Hand-held cleaver and unique tool kit design
• Fiber alignment mechanism
• Self-centers the fiber for accurate alignment end and low loss
• No adhesive or epoxy required
• Reduces splice time with no curing needed
• Universal
• One part fits all fiber coatings
• Designed for difficult installation scenarios
• Hand-held cleaver and unique tool kit design
